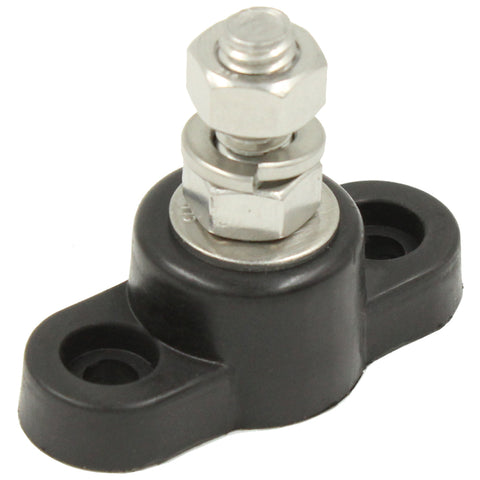

Single M8 Terminal Post/Bus Bar

  • SKU:
    • Trade
    • Regular price $12.00
    GST included. Free Shipping Available Australia Wide


    Please select Black, Red or Set from drop down menu

    8mm stud to suit M8 Terminals

    316 Stainless Steel, corrosion resistant

    Insulated Polypropylene/Nylon base

    Includes spring washer for use in high vibration applications

    Select from Black (-), Red (+) or Set (Black + Red)

    Included:

    • 1 x Selected Unit or Set - Select from drop down menu

    Each Unit includes:

    • 1 x 8mm Bolt/Stud
    • 2 x Locking Nuts
    • 1 x Spring Washer
    • 1 x Base Washer
    • 2 x Mounting Screws

    12v Bus Bar in Black (Negative) and Red (Positive) or commonly in a set.

    Our Marine Bus Bar can be used in a wide variety of Automotive and Marine applications. The power distribution block can be used to keep the battery organised with just one wire attached to each terminal.

    Having a battery busbar is a great way to prevent issues and troubleshoot problems as the leads be made more accessible for identifying and tracing faults.

    This insulated busbar allows you to work in the area or store items without the fear or the battery terminals shorting on another item that may hit it.

    An electrical busbar distribution block is an easy way to simplify your wiring and setup.

    CLICK HERE to view our full range of Bus Bar's to create your ultimate set up.

    Please select Black, Red or Set from drop down menu

    Max. Rating: 250A @ 12v
    Max. Voltage Supply: 48vDC
    Body Dimensions: 25mm (W) x 52.5mm (L) x 41.8mm (H - mounting face to top of stud)
    Terminals: 8mm Stud suit M8
    Mounting Holes: 5.5mm (recessed)
    Mounting Hole Centres: 34.8mm (L)

    Special Notes

    For shipping purposes and to assist with initial mounting, this bolt/stud is removed from the housing prior to dispatch. Assembly is simple, but must be done prior to final mounting of unit base, as bolt/stud is fitted from underneath.
