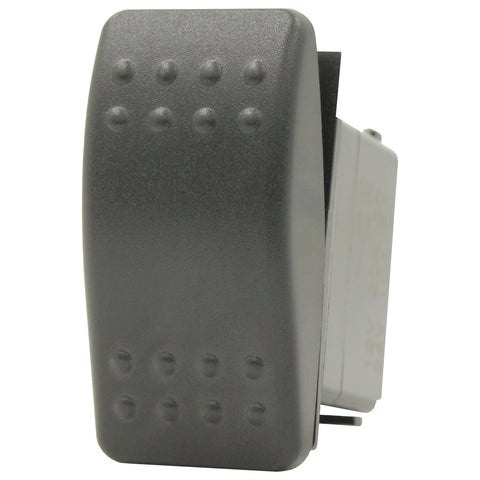

Rocker Switch - No LED - 18 Styles

  • Sale
  • Regular price $17.00
GST included. FREE SHIPPING ON ALL ORDERS AUSTRALIA WIDE


Please select the Rocker Switch style above in the drop down menu

Please select Pole option above in the drop down menu

No LED Blank Rocker Switches

Single and Double Pole available

Printed Graphic and Text on Cover (if applicable)

These switches can be fitted with our Rocker Switch Covers, but will have no LED illumination - see our full range here

IP67

Simple and firm mounting for quick installation

All Switches include a waterproof gasket seal for switch mounting face

Our 12v Rocker Switch can be used in many applications, with a variety of functions available including: On-Off Rocker Switch, On-Off-On Rocker Switch, 3 Way Momentary and Non-Momentary. Our range are available with Single and Double Pole options

Need a Rocker Light Switch or Winch Switch? This range has got you covered. With their versatility and heavy duty toggle switch function, our Rocker Switch ranges will have a switch for you.

Want more – link multiple switches together to create your ultimate set up. Combine a Winch Isolator Switch with a Winch Switch for the cleanest look, and best functionality.

Please select the Rocker Switch style above in the drop down menu

Please select Pole option above in the drop down menu

Can't find the switch you are looking for? Check out our full Rocker Switch range - click here!

Available switch specifications:
Brackets () indicate momentary function

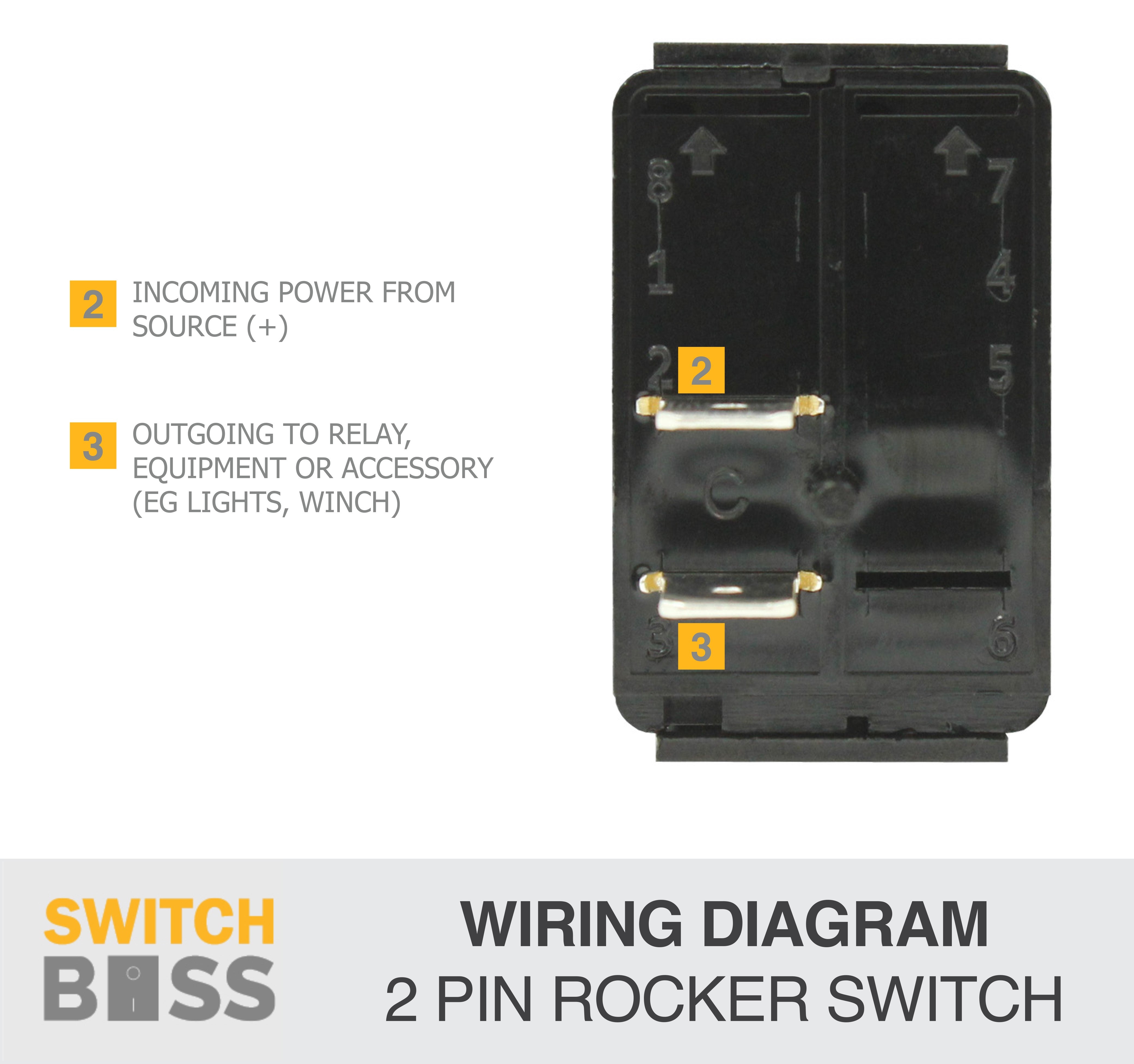

2 Way Single Pole - 2 Pin On-Off, 2 Pin (On)-Off, 3 Pin On-On

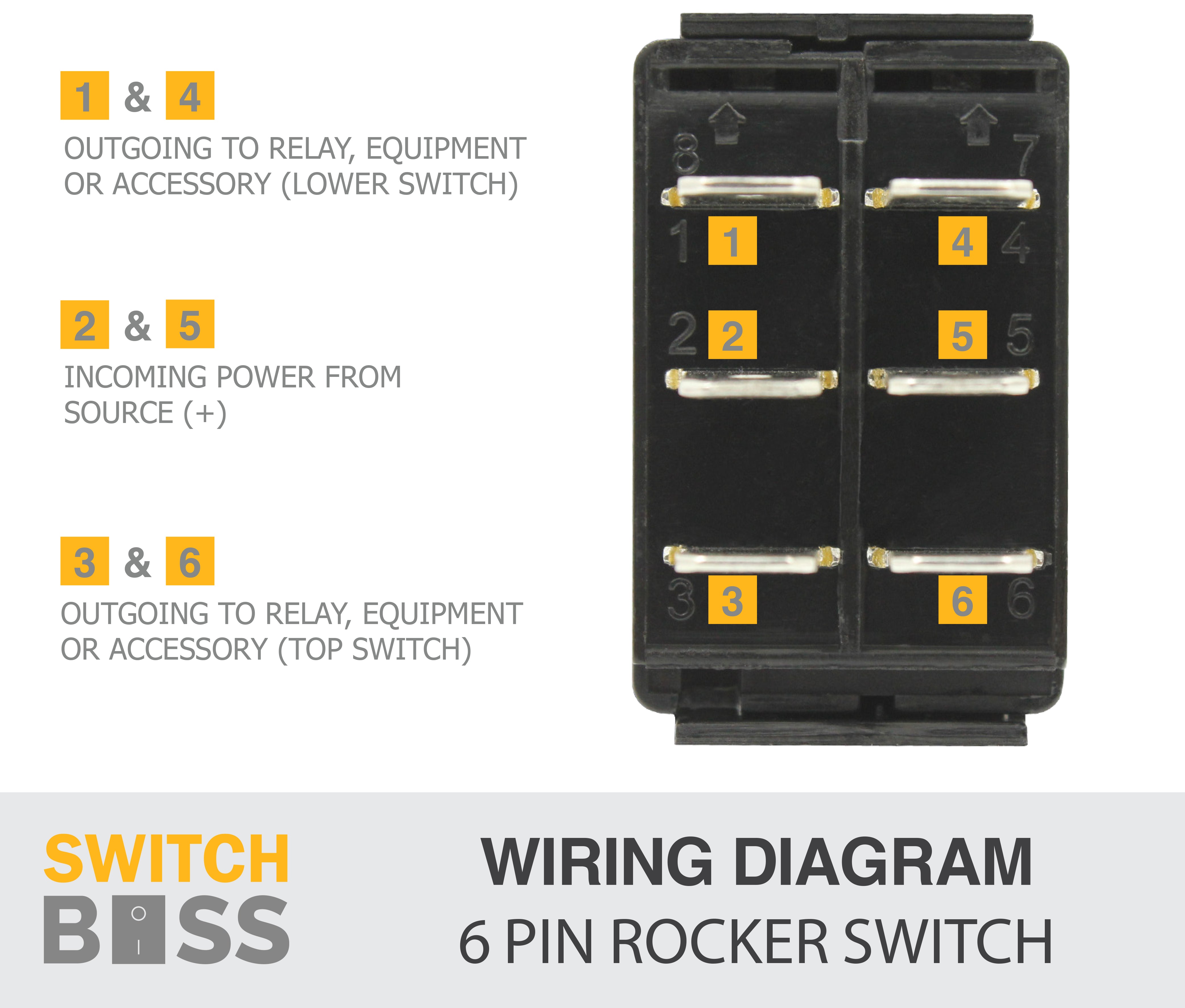

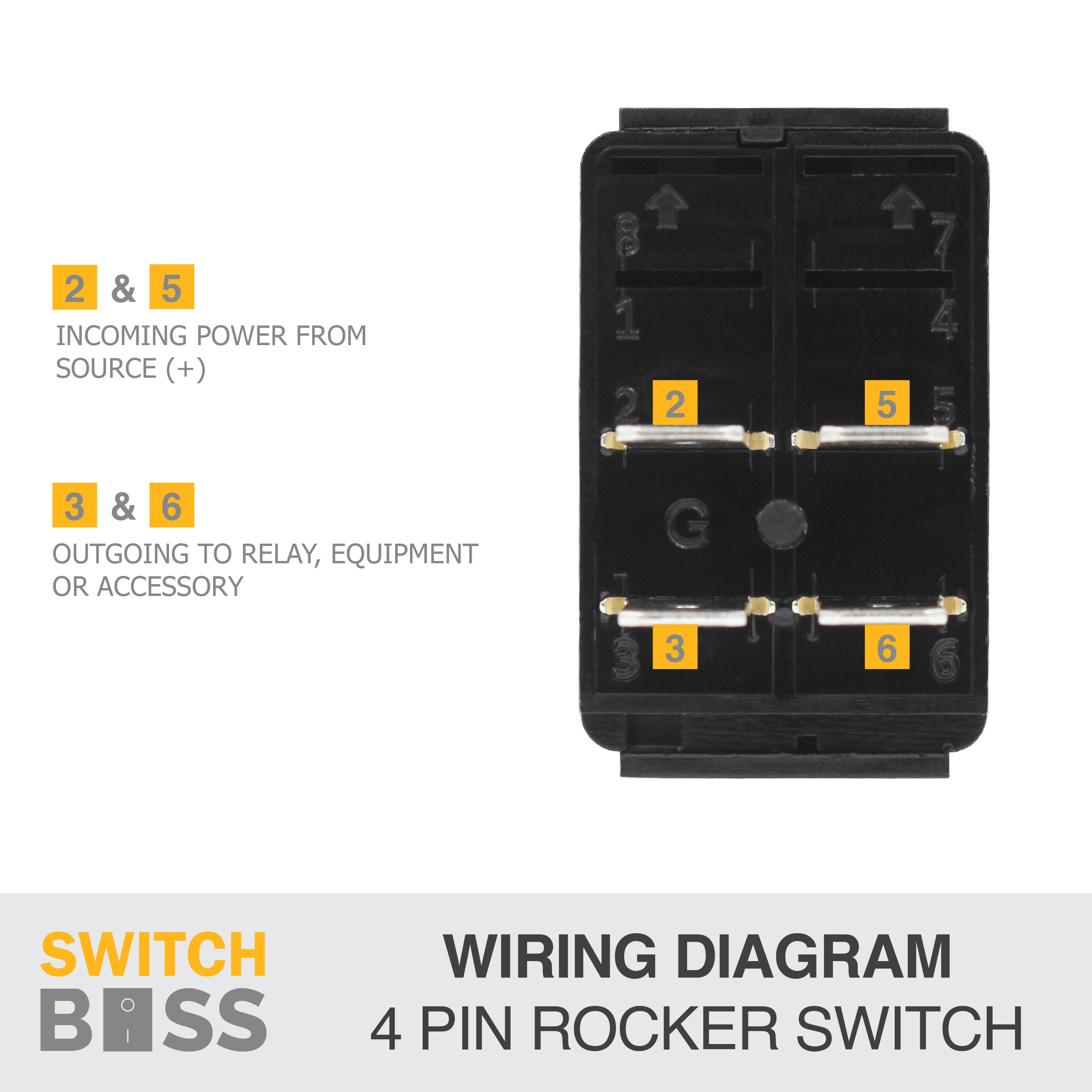

2 Way Double Pole - 4 Pin On-Off, 4 Pin (On)-Off, 6 Pin On-On, 6 Pin (On)-On

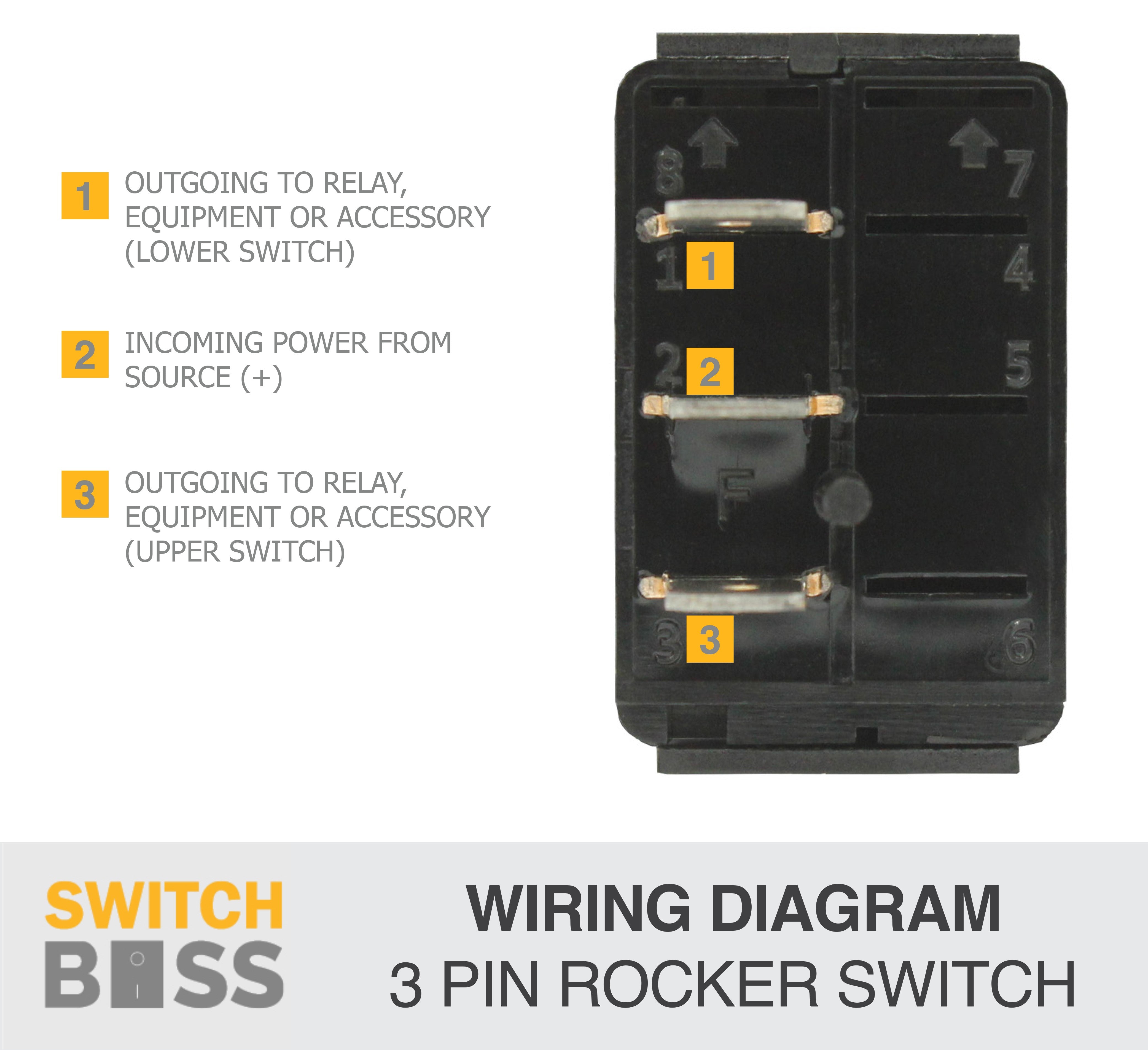

3 Way Single Pole - 3 Pin On-Off-On, 3 Pin (On)-Off-(On), 3 Pin (On)-Off-On

3 Way Double Pole - 6 Pin On-Off-On, 6 Pin (On)-Off-(On), 6 Pin (On)-Off-On

Functions
On-Off: Switch Up for On, Switch Down for Off
(On)-Off: Hold Up for On, release for Down and Off - Momentary function
On-Off-On: Switch Up for On, Switch Down for On, Centre for Off
(On)-Off-(On): Hold Up for On, Hold Down for On, Release for Centre and Off - Momentary function
(On)-Off-On: Hold Up for On (Momentary), Release for Centre and Off, Switch Down for On
On-On: Switch Up for On, Switch Down for On - No OFF position
(On)-On: Hold Up for On, release for Down and On - No OFF position
Front Tank/Rear Tank: On-On
Front Tank/Rear Tank Blue Lines: On-On
Front Tank/Rear Tank Green Lines: On-On
Front Tank/Rear Tank Red Lines: On-On
Front Tank/Rear Tank White Lines: On-On



Size of Cut Out Required for Switch: 21.5mm (W) x 37.5mm (H)
Switch Face Size: 24.5mm (W) x 49.5mm (H)

Depth (from back of mounting face): 38mm
Voltage: 12v-24v
Maximum Rating: 10A @ 24v, 20A @ 12v
IP Rating: IP67
LED Colour: No LED
Switch Materials: ABS + electrical components
Switch Type: Varies depending on selection from drop down menu above. See description for more details

Link to wiring instructions included with all orders.

CLICK HERE to view our Wiring Instructions page.

--
