8 Gang Rocker Switch Panel - Red

  • SKU: SBPG-R008
    • Trade
    • Regular price $65.00
    GST included. Free Shipping Available Australia Wide

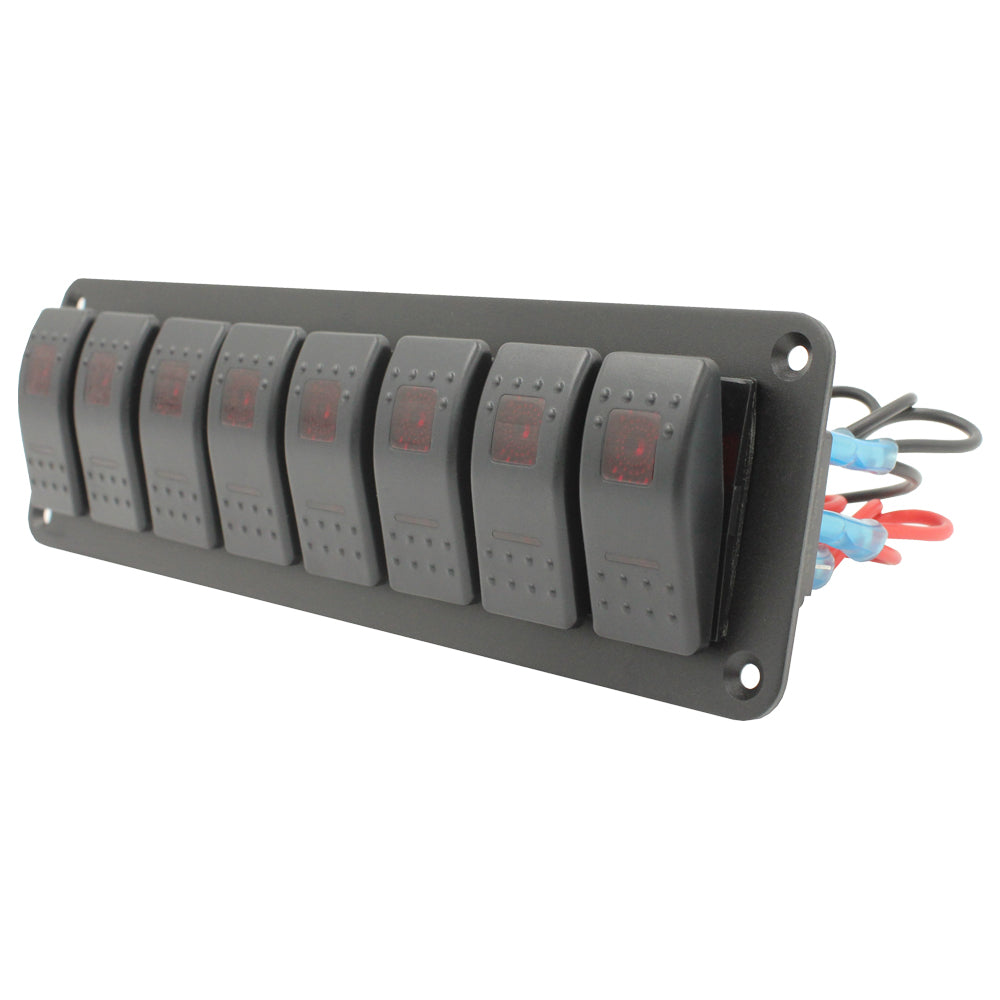

    8 Gang Rocker Switch Panel - Red

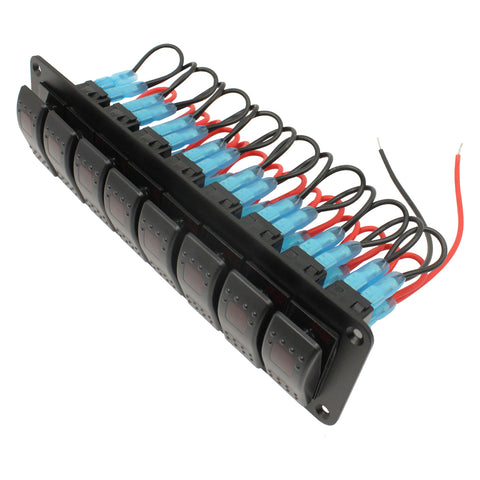

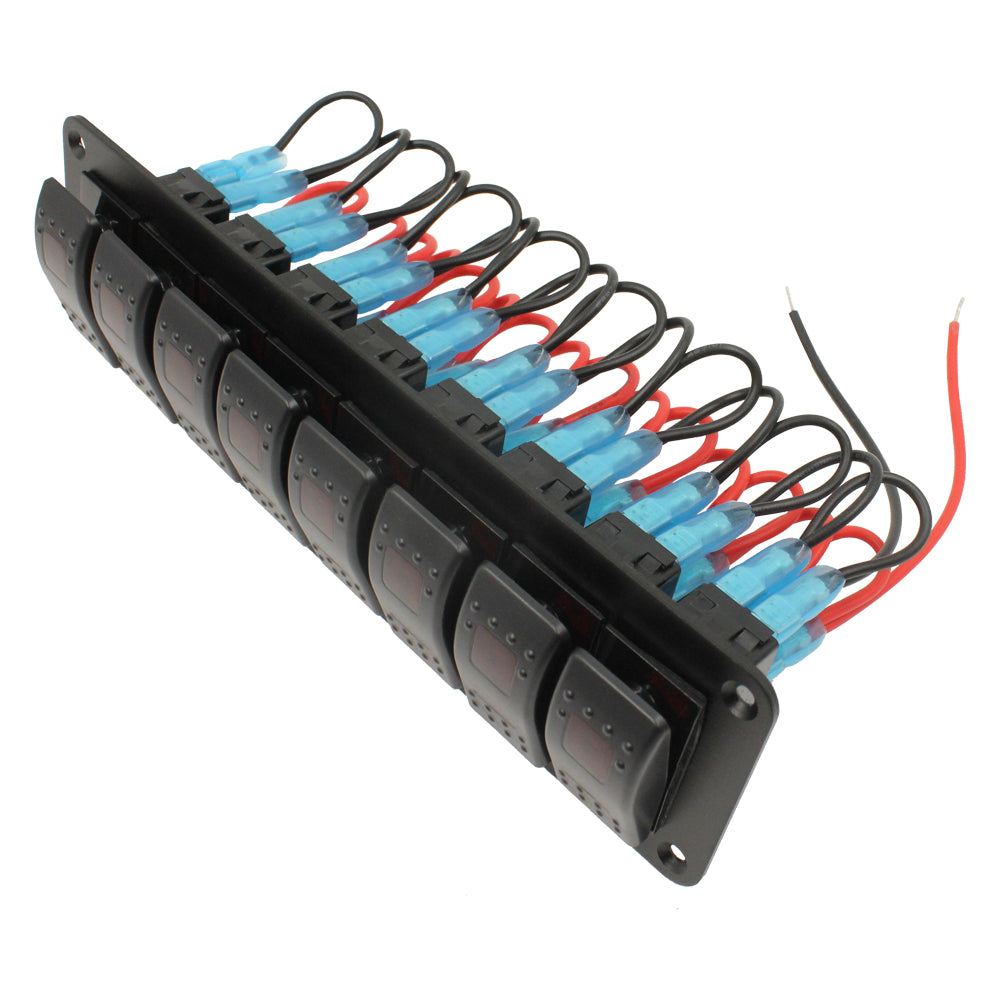

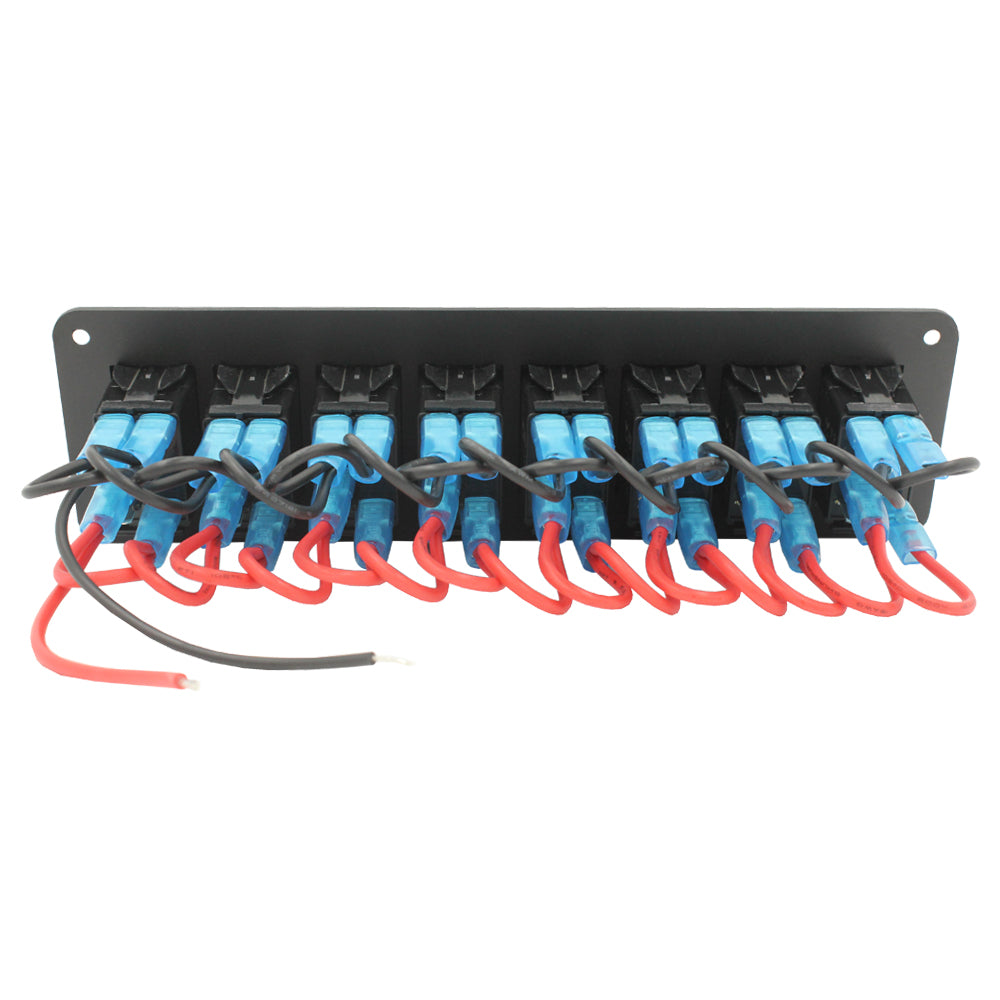

    Pre-Assembled and Pre-Wired for Easy Installation

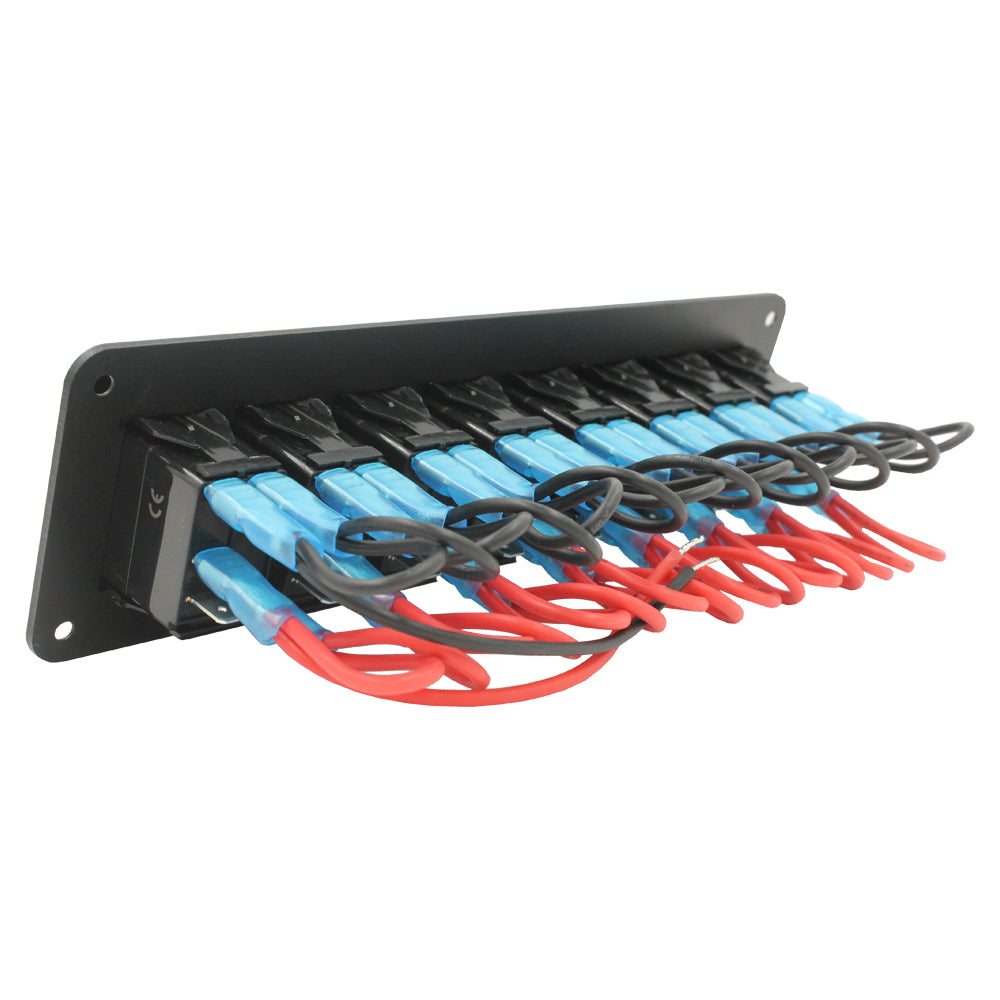

    All dash light/lower LED positive terminals pre-wired across switches, with only a single positive connection required

    All LED negative terminals pre-wired across switches, with only a single negative connection required

    Separate power/positive feed for main power in to each switch, to allow for separate circuit/fused power supply to each switch. Pre-crimped male spade terminal fitted

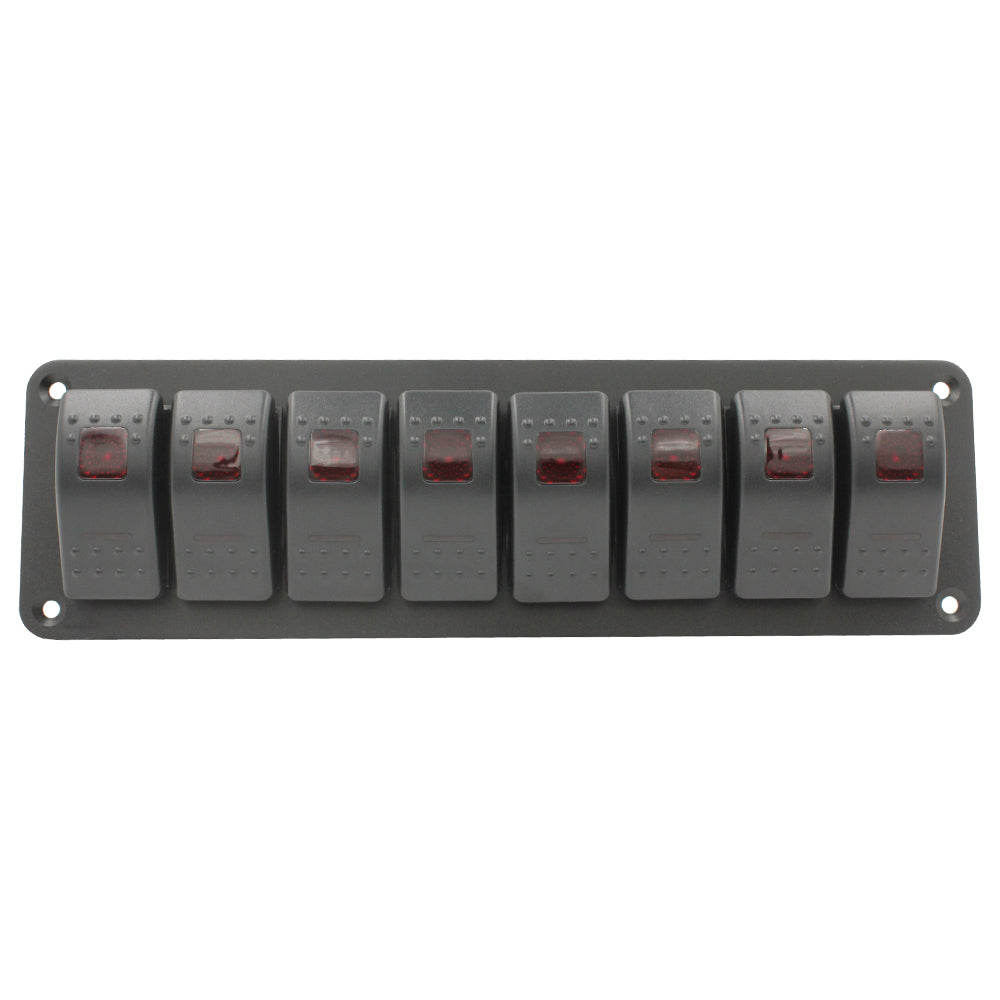

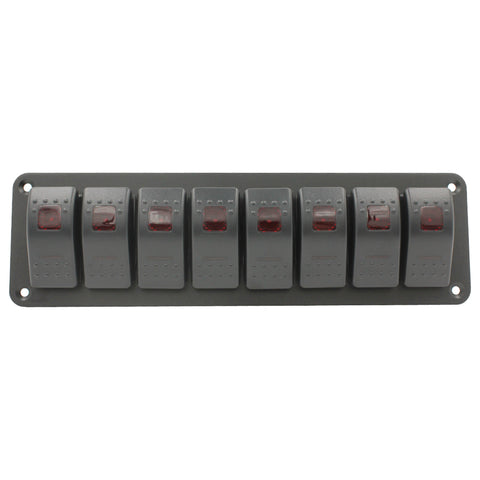

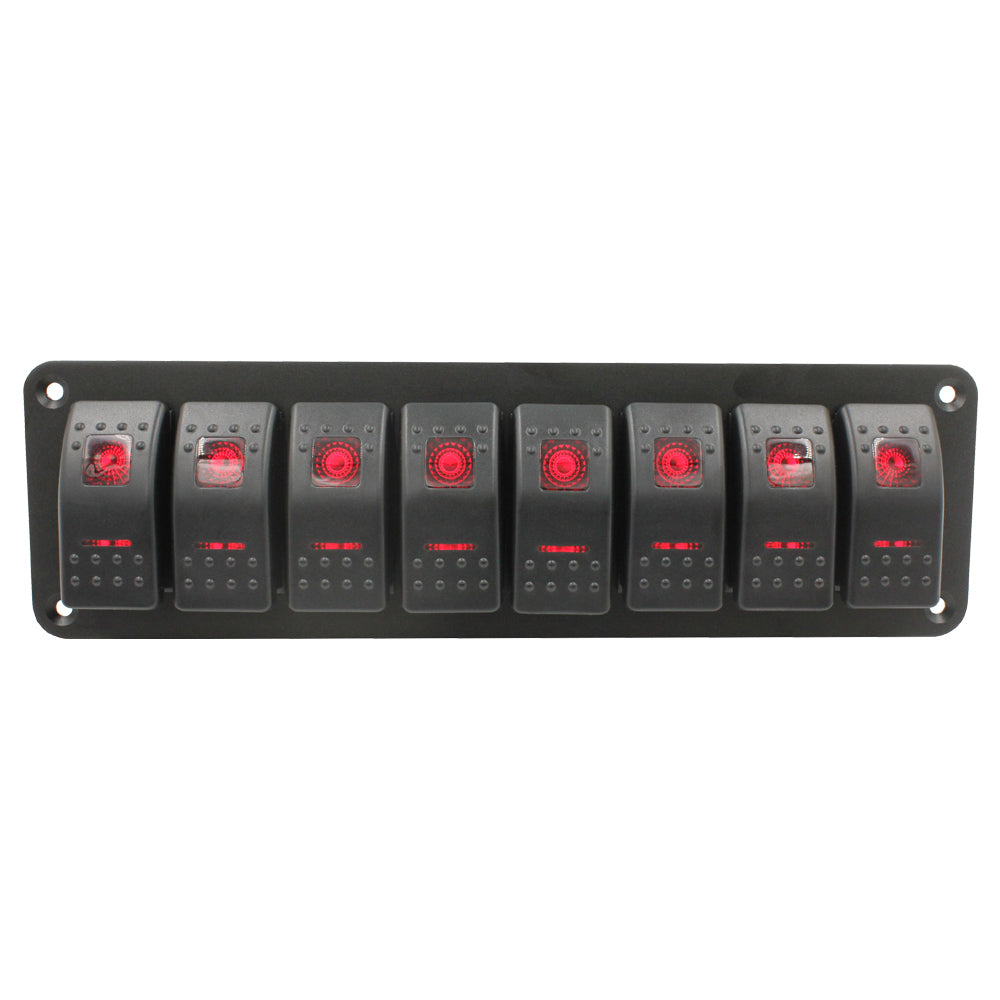

    Black Rocker Switch with Red LED/Blank Cover

    Aluminium Panel

    Gasket Seal Fitted for Switch To Panel

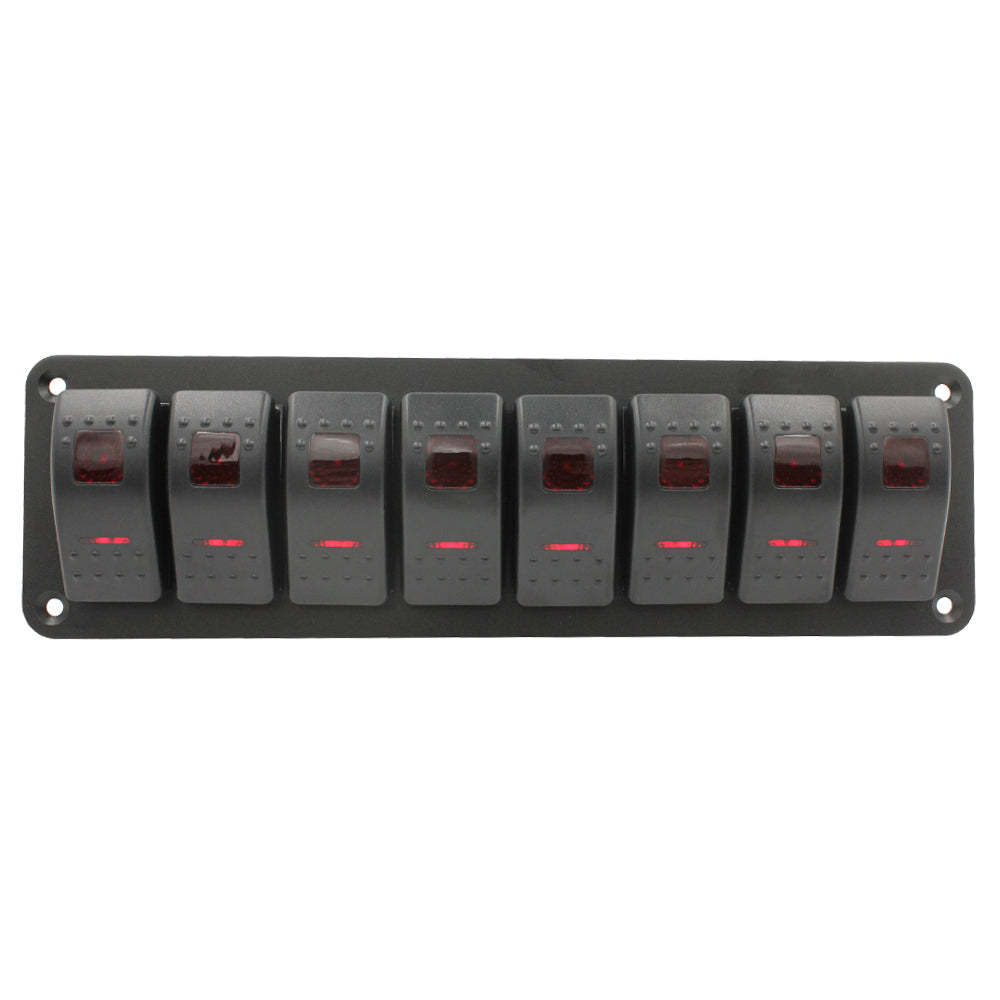

    Lower LED Illuminates for Dash Light - Main LED Illuminates for "ON"

    Customise this switch panel with custom Rocker Switch Covers found here

    Included:

    • 1 x 8 gang pre-wired/pre-built panel
    • 4 x Black mounting screws
    • 1 x Sticker pack

    Why choose a rocker switch?
    A rocker switch is the most versatile 12 v switch on the market. This is because it is rated for a 20A output so there relays are often not required. This enables simple installations compared to low output switches that often only output 3A.

    This Switch Boss Pre Wired Switch Panel is a versatile 12 v panel that is well suited to a large range of applications including caravans, boat switch panel and off-road vehicles.

    This aluminium switch panel has many functions including rocker light switch, marine rocker switch and 12v rocker switch which makes it the most versatile, quick to install and long lasting panel in the market.

    Installing a clean and robust rocker switch panel will make your journey a safe and enjoyable experience. These panels can also be used over the top of existing switch cut outs. This means that you don't have to worry about the existing switch holes in your facia, this panel can go over the top of those cut outs providing a clean seamless look.

    Customise this switch panel with custom Rocker Switch Covers found here

    Switches: ABS + electrical components.
    Panel: Aluminium (2mm Plate)
    Switch type: Rocker switch On-Off SPST. Up for On, down for Off
    LED colour: Red

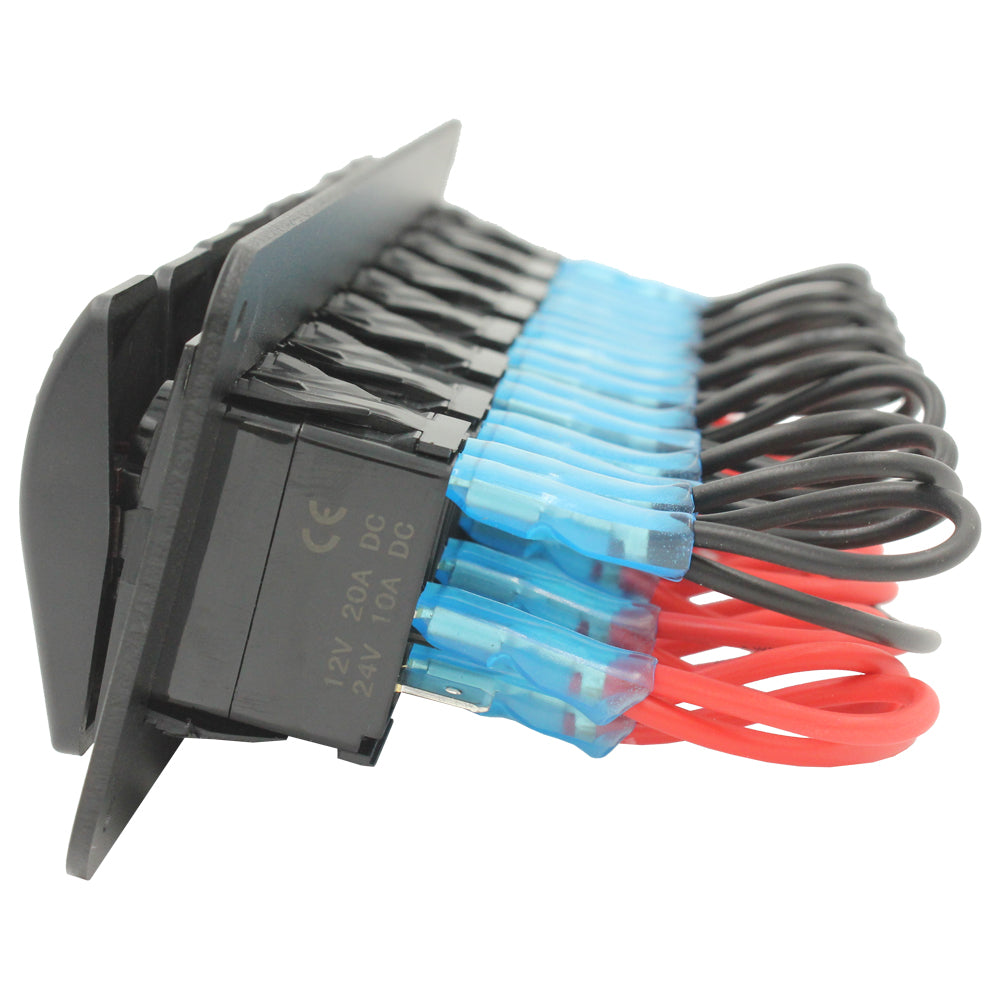

    Maximum rating: 10A @ 24V   or   20A @ 12V
    Surface face size: 232mm (W) x 68mm (H)
    Mounting holes: 4mm (countersunk)
    Mounting hole centres: 216mm (W) x 52mm (H)
    Depth Required (for wiring): 75mm

    Please note:

    • As these items are pre-assembled, pre-wired and tested prior to dispatch, we cannot warrant or guarantee any modification, disassembly or re-wiring of the panel.
    • Switch terminals have small locking hole as standard for female spade terminal. Ensure this is unclipped if terminal removal is required.
