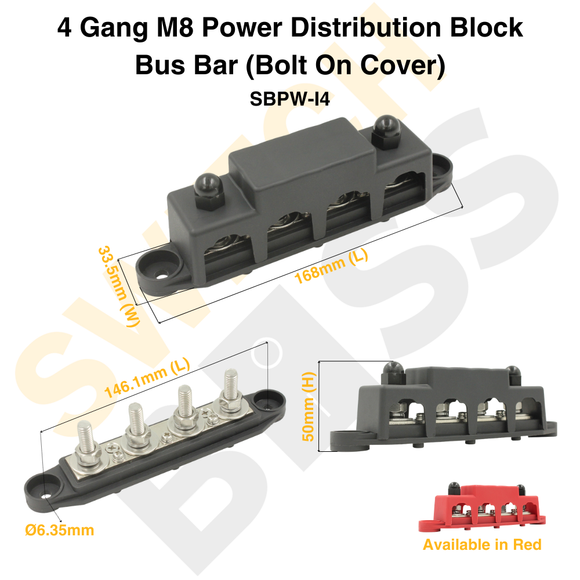

4 Gang M8 Power Distribution Block - Bus Bar (Bolt On Cover)

  • SKU:
    • Trade
    • Regular price $40.00
    GST included. Free Shipping Available Australia Wide


    Please select Black, Red or Set from drop down menu

    4 x 8mm bolts/studs to suit M8 Terminals

    3 x Size #8 (4mm) Screws with spring washers

    304 Stainless Steel, corrosion resistant

    Bolt-on cover for stud and wiring protection

    Plastic insulated nuts for cover fixing

    Bridge plate and base washer for each bolt

    Insulated Polypropylene/Nylon base

    M8 bolts located by fixed base plate can be replaced/serviced as required

    Select from Black (-), Red (+) or Set (Black + Red)

    Included:

    • 1 x Selected Unit or Set - Select from drop down menu

    Each Unit includes:

    • 4 x M8 Bolts
    • 4 x M8 Locking Nuts
    • 4 x M8 Spring Washer
    • 4 x M8 Base Washers
    • 3 x #8/M4 Bolts
    • 1 x Cover
    • 1 x Bridge/Base plate
    • 2 x Mounting Screws

    12v Bus Bar in Black (Negative) and Red (Positive) or commonly in a set.

    Our Marine Bus Bar can be used in a wide variety of Automotive and Marine applications. The power distribution block can be used to keep the battery organised with just one wire attached to each terminal.

    Having a battery busbar is a great way to prevent issues and troubleshoot problems as the leads be made more accessible for identifying and tracing faults.

    This insulated busbar allows you to work in the area or store items without the fear or the battery terminals shorting on another item that may hit it.

    An electrical busbar distribution block is an easy way to simplify your wiring and setup.

    CLICK HERE to view our full range of Bus Bar's to create your ultimate set up.

    Please select Black, Red or Set from drop down menu

    Max. Rating: 250A @ 12v
    Max. Voltage Supply: 48vDC
    Body Dimensions: 33.5mm (W) x 168mm (L) x 50mm (H - including cover nut)
    Terminals: 4 x 8mm, 3 x 4mm
    Mounting Holes: 6.35mm / 1/4" (recessed)
    Mounting Hole Centres: 146.1mm (L)
