Custom switch to suit Mazda BT50 console — designed to match your setup with personalised text and symbol. No cutting, easy install, factory fit.
$34.00
Trade$-34
GST Included
Free Shipping
Switch Function: -
This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.
Product Info
This 12V Custom Mazda BT50 (2021+) Gen 3 Compatible Push Switch is designed to provide a clean and reliable way to control your accessories. Featuring white dash illumination and a blue “On” indicator, it delivers a professional look with simple, ergonomic operation. With over 100 symbols and unlimited text options, you can create a personalised switch setup for lights, winches, or other 4x4 upgrades. Built with durable materials and a secure fit for the console, it offers long-lasting performance you can trust. Backed by Switch Boss quality, it’s a dependable upgrade for DIY users and installers alike.
Compatibility
Make
Model
Years
Mazda
BT50 (TF) (Gear Console)
2021 - 2025
Customisation
Simply select your preferred Function and Top Symbol from the respective drop down menu.
Then select either Text or "On" Indicator for the respective drop down menu.
Type your desired text in the Text Box
Maximum 10 Characters per line
Maximum 2 lines - 20 Characters total
Special Notes:
Visual preview is for reference only. We will format the custom etching to match our existing range as much as possible
Double check your spelling in the text box. This will be copied exactly
If you don't want any text etching, please write "NO TEXT" or leave the text box empty
The current format, with a symbol upper and text lower is our only currently available format
We reserve the right to refuse etching of text containing inappropriate material or profanity
Please make your selection carefully as we cannot offer returns on our custom etched products
Specifications
• Common specifications
Common specifications for Custom Push Switch suit Mazda Square (Gen 3).
Specification
Value
Amps
3A
Input Voltage
12V
Package Contents
1 x Custom Push Switch suit Mazda Square (Gen 3)
Maximum Rating
3A @ 12V
LED Colour
White-Blue
Special Notes
LED colour: White (Lower), Blue (Upper/On)
Switch face/body colour: Black
Strongly recommended to be wired through a fused relay
Designed for positively switched applications
Visual preview is for reference only. We will format the custom etching to match our existing range as much as possible
Double check your spelling in the text box. This will be copied exactly
If you don't want any text etching, please write "NO TEXT" or leave the text box empty
The current format, with a symbol upper and text lower is our only currently available format
We reserve the right to refuse etching of text containing inappropriate material or profanity
Please make your selection carefully as we cannot offer returns on our custom etched products
• Variant specifications
Select all options above to see variant specifications
Specifications for selected variant of Custom Push Switch suit Mazda Square (Gen 3).
Specification
White-Blue / On-Off
Wire size
20AWG x 19cm
Face size
23mm (W) x 23mm (H)
Throws
Single Throw
Poles
Single Pole
Switch function
On-Off

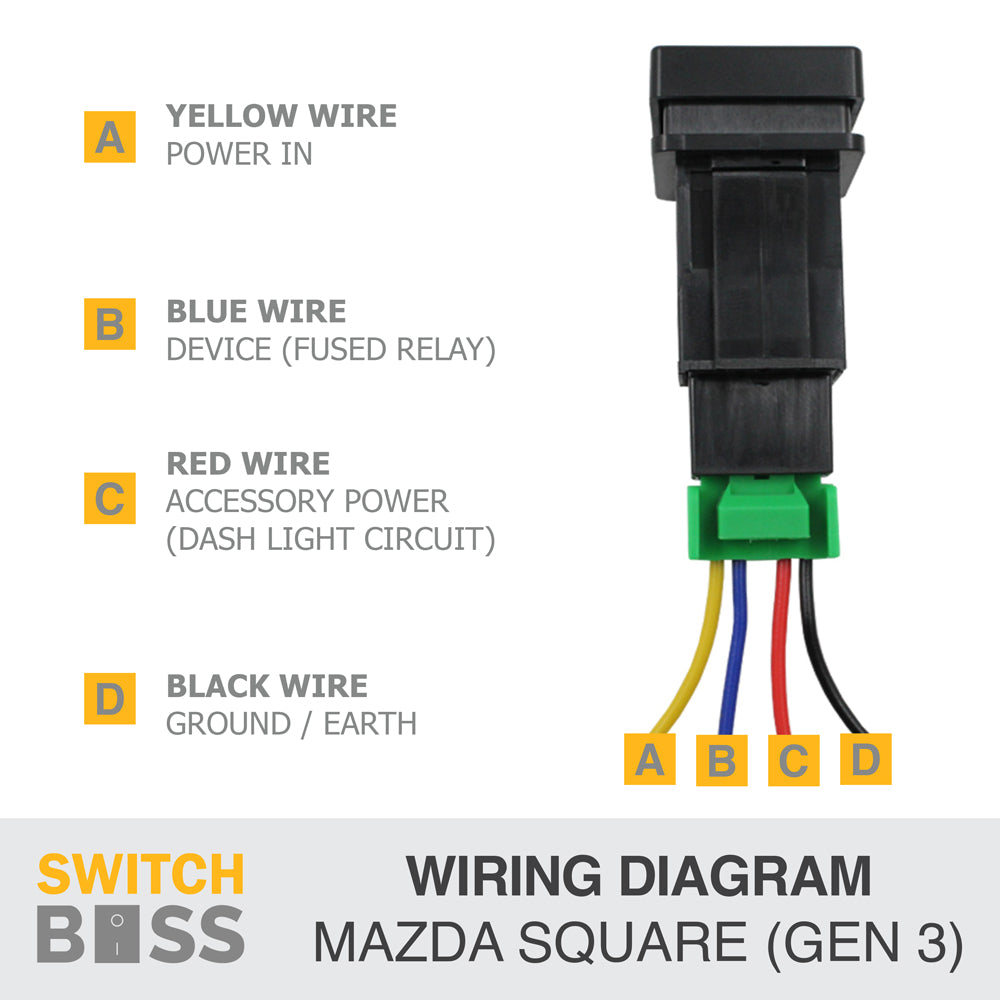

Wiring Diagram
Shipping & Returns
Free Standard Shipping on all products, Australia wide
Order by 1pm AEST for same day dispatch (Business Days)
All shipping details and transit times listed here
Buy with confidence with 30 Day Returns. Full returns details listed here
Disclaimer
Switch Boss® designs and supplies aftermarket products that are compatible with a wide range of vehicles and equipment. Unless otherwise stated, these products are not genuine or original parts from the listed brands or manufacturers. Switch Boss® products are not affiliated with, endorsed by, or sponsored by any vehicle or equipment manufacturer.
All manufacturer names, models, and trademarks are used strictly to identify compatibility, fitment, or intended use. Brand and vehicle names are included only to show which products our aftermarket parts are designed to work with.
Switch Boss® does not sell or distribute genuine Toyota, Nissan, Mitsubishi, Mazda, Isuzu, Holden, GM, Ford, Suzuki, Volkswagen, Starlink or any other branded products. Our parts are aftermarket alternatives only.
