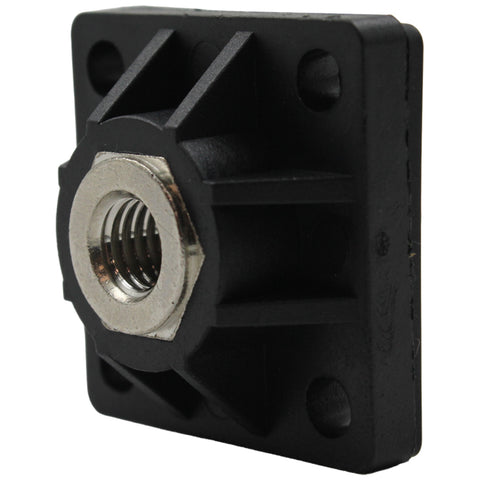

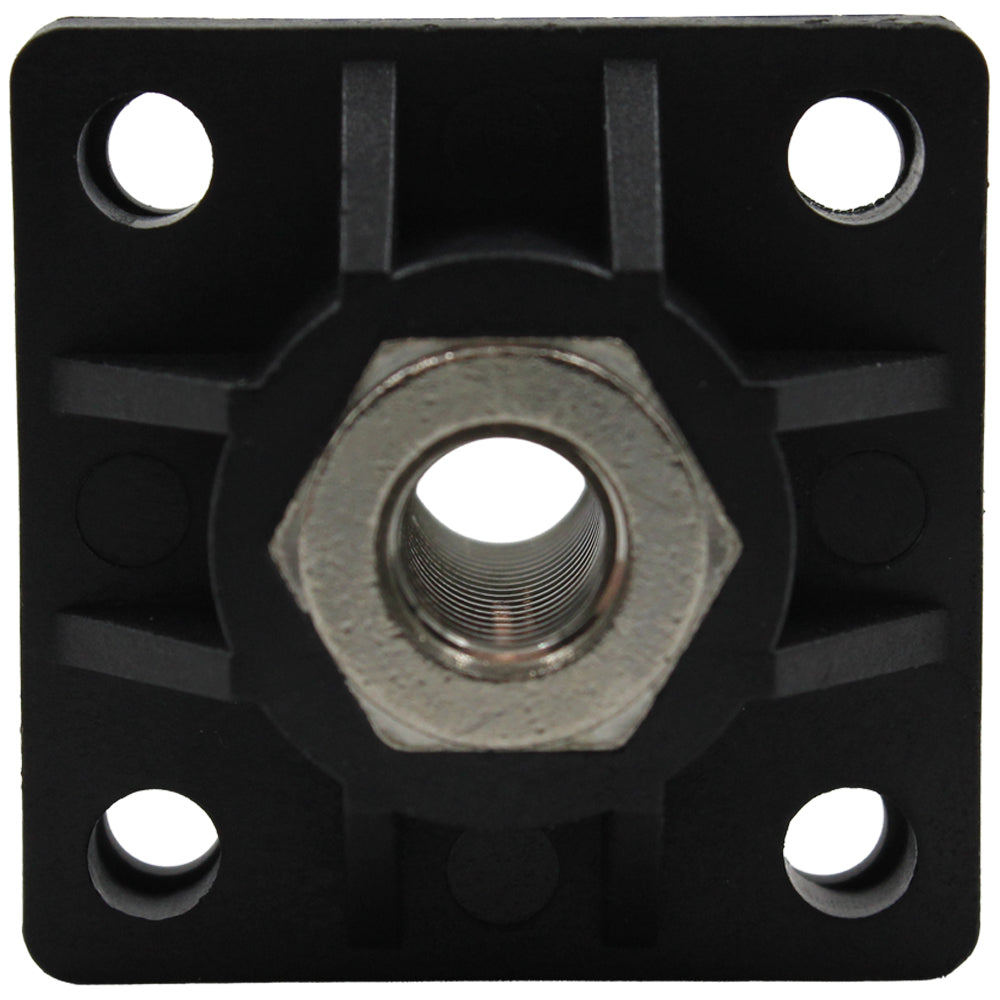

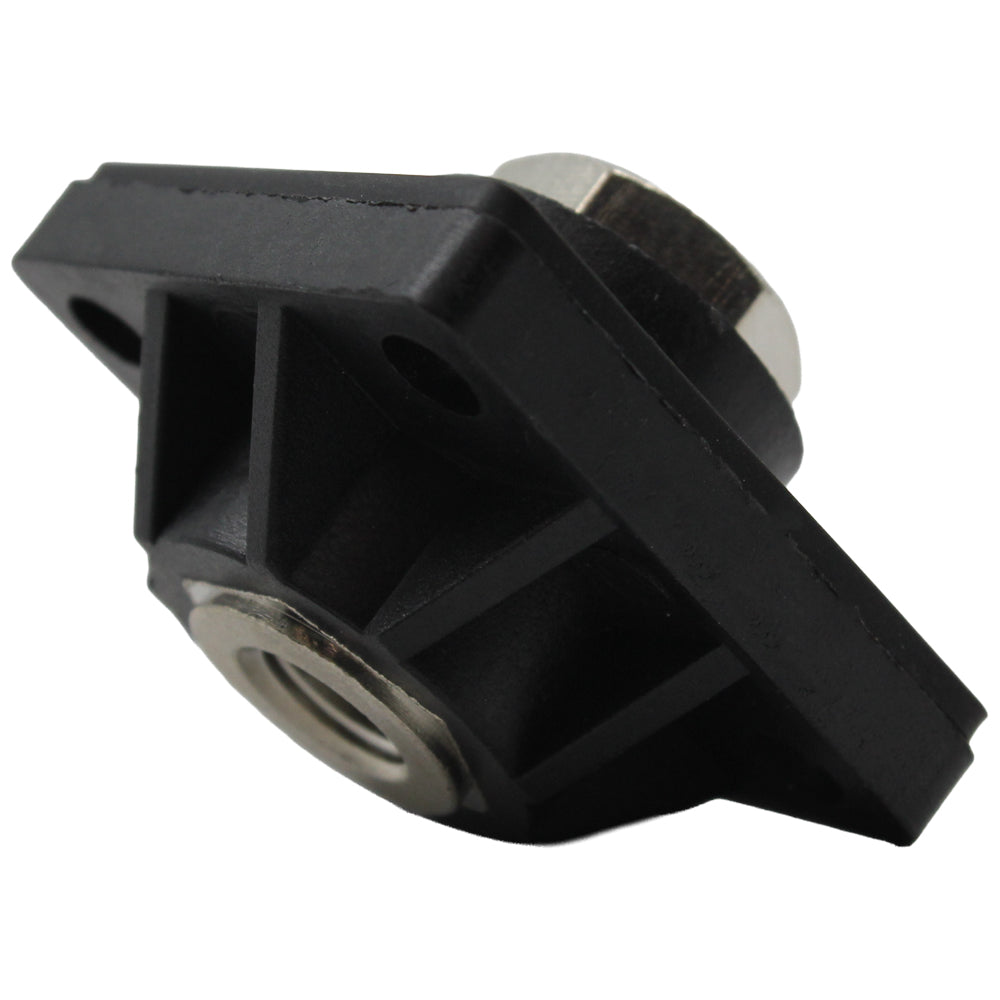

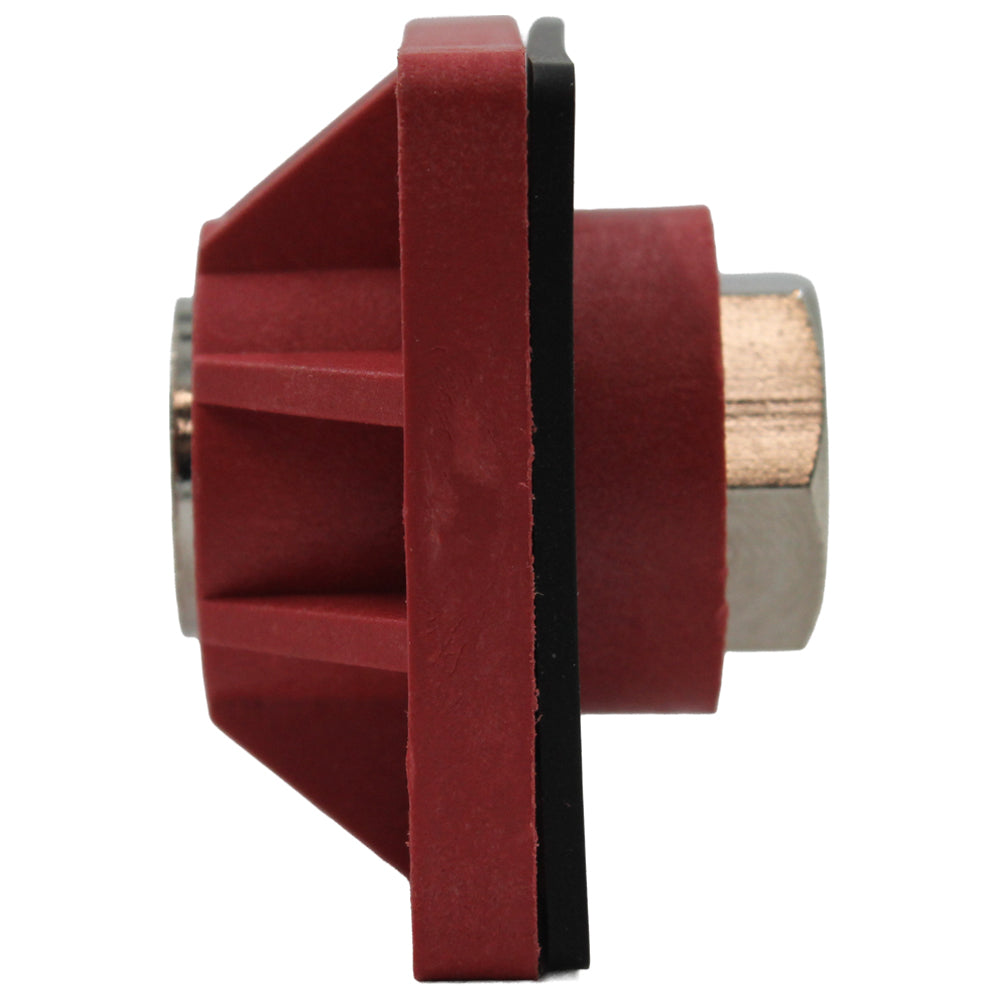

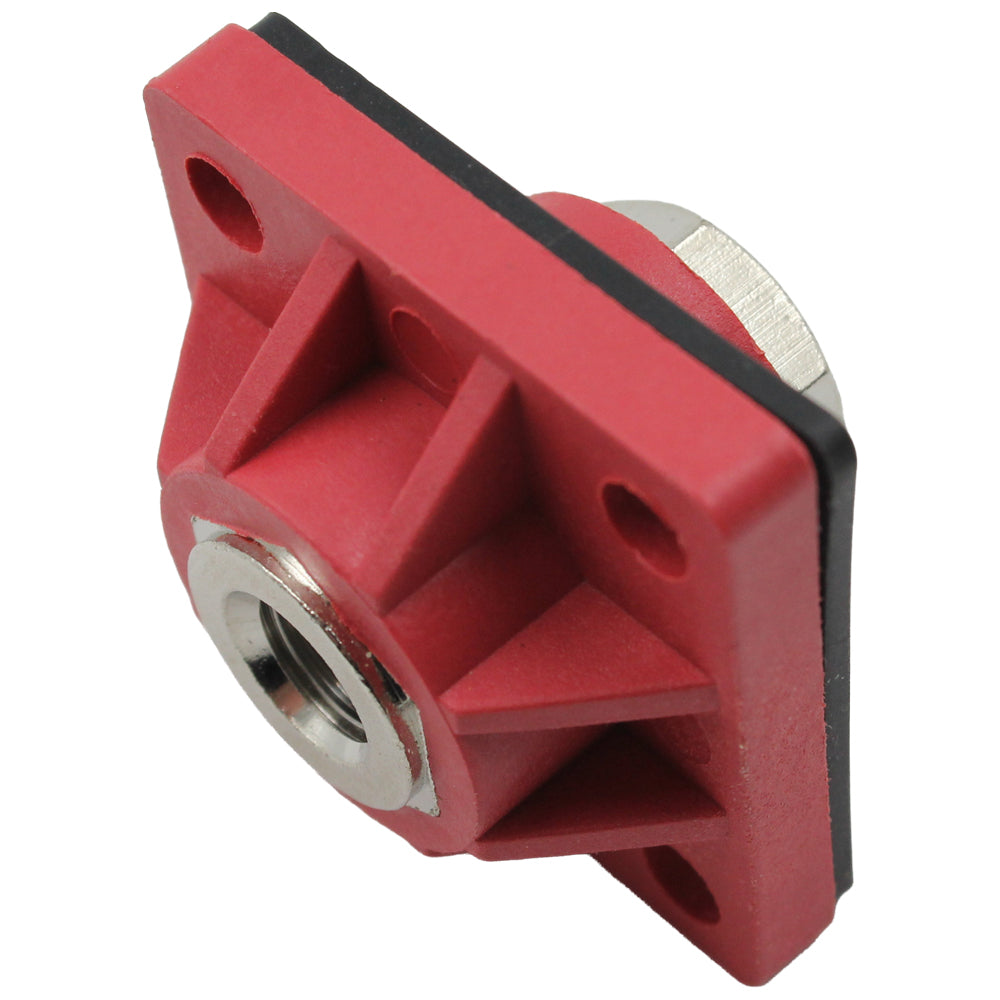

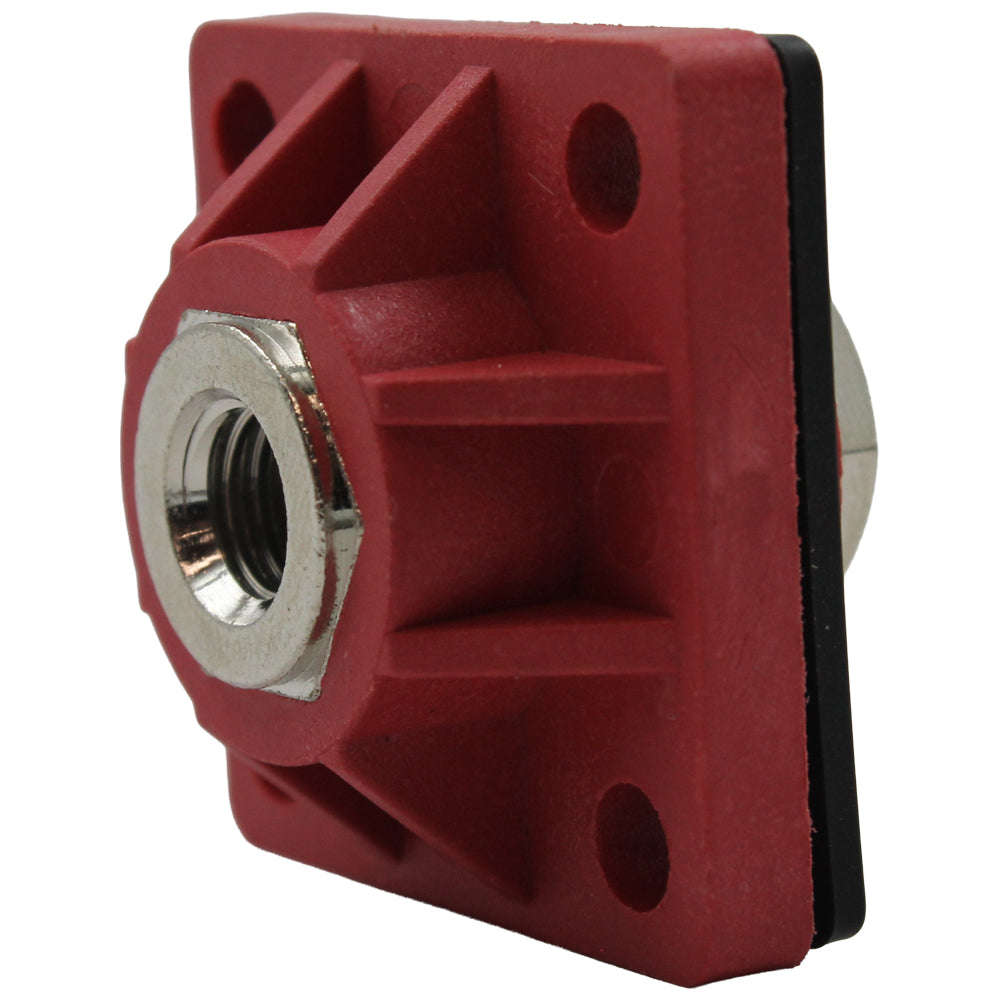

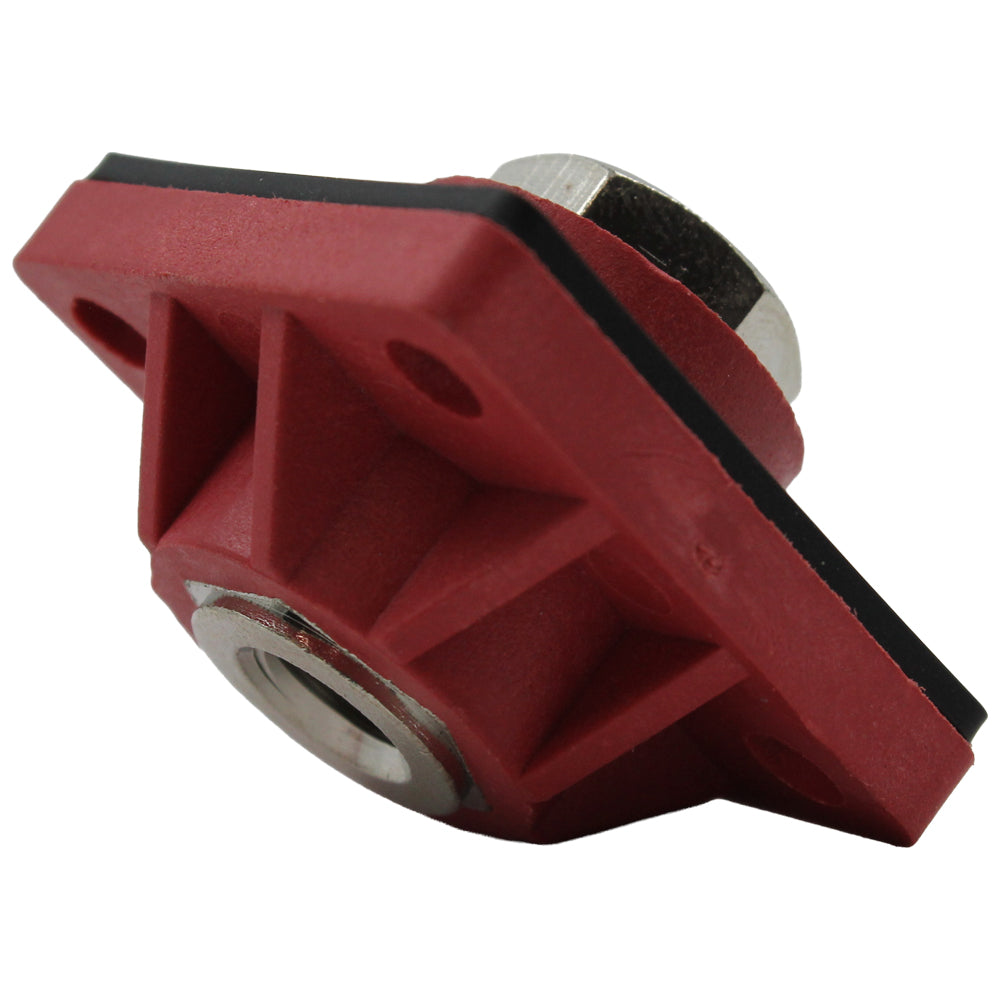

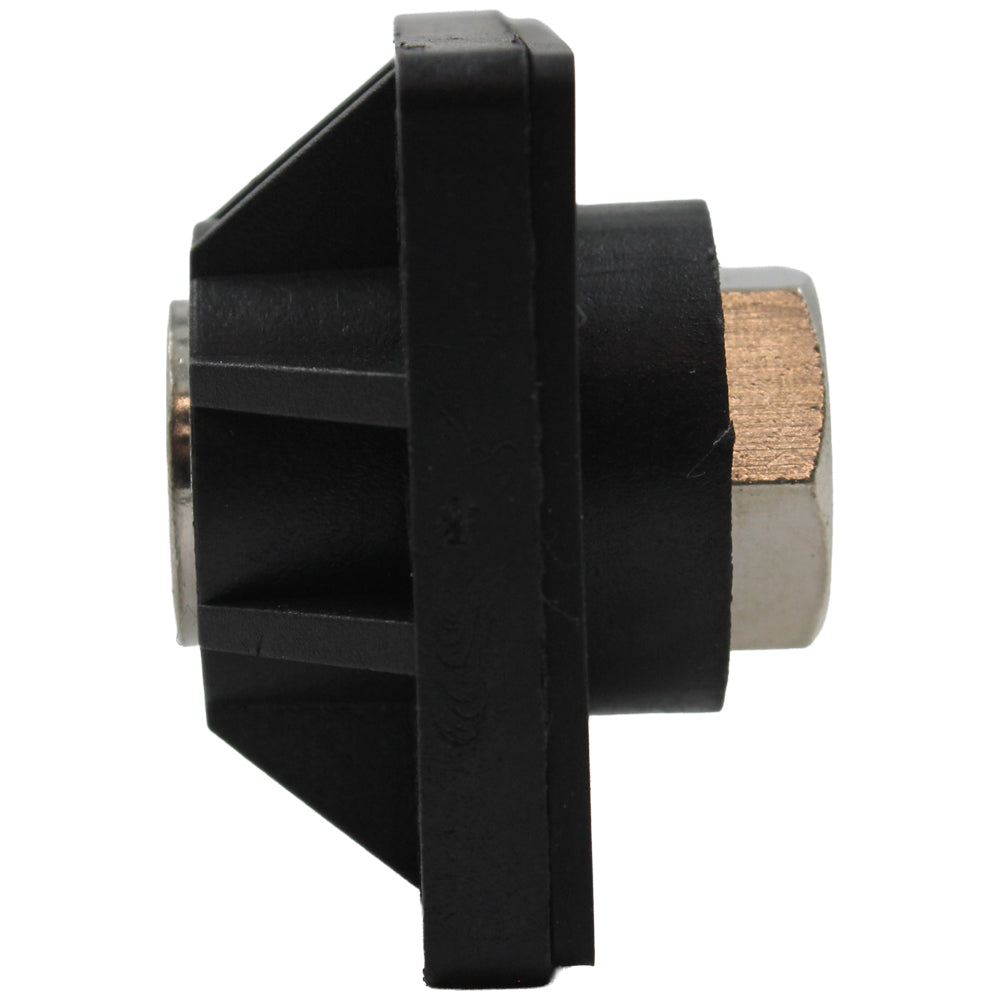

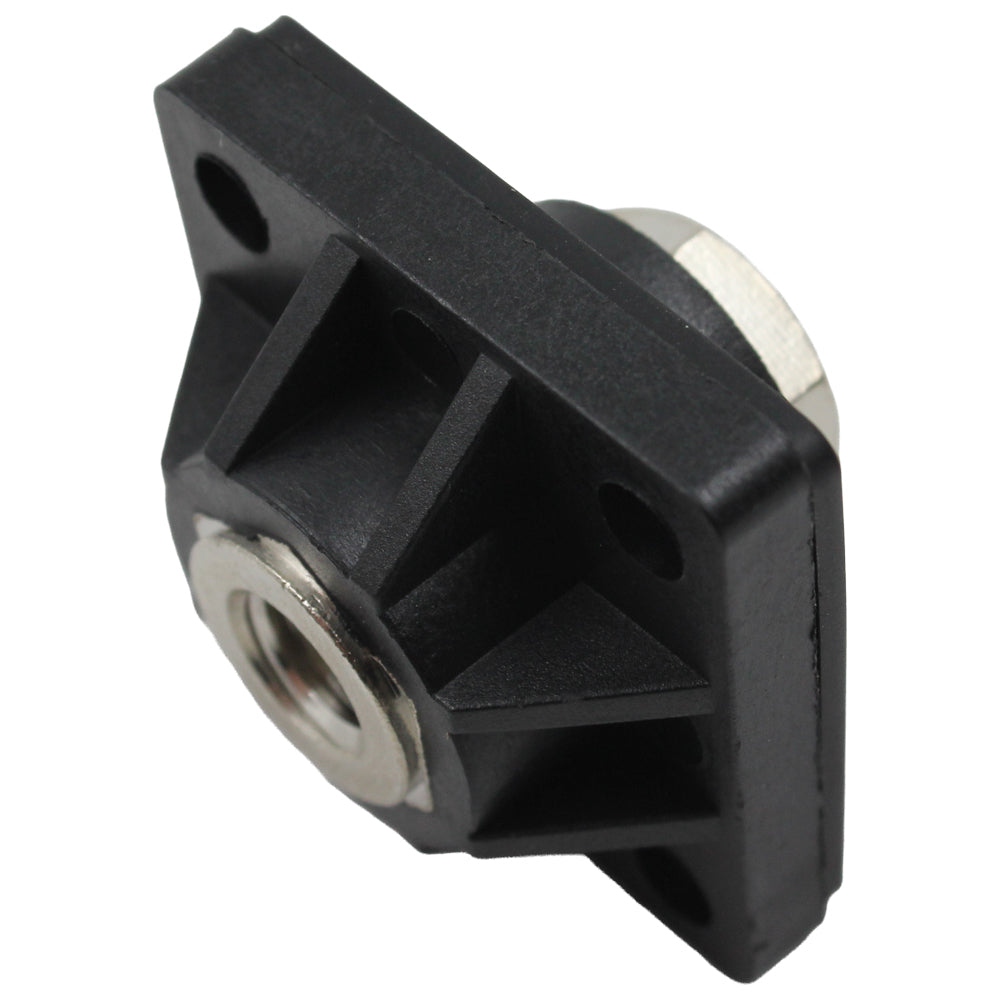

200A Female-Female M8 Pass-Through Connectors
M8/8mm Female thread on both sides to suit standard M8x1.25mm bolts
Panel-mount design with 4x4.5mm mounting holes for clean and secure installations

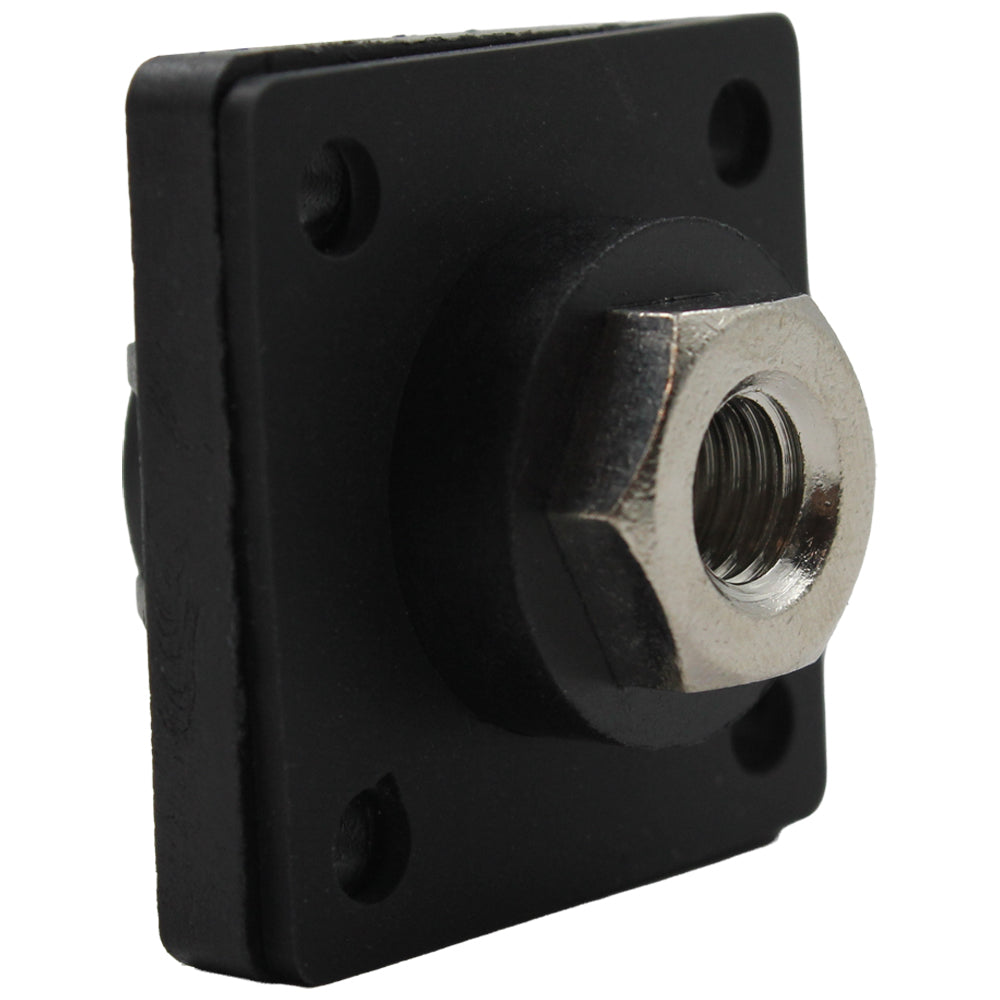

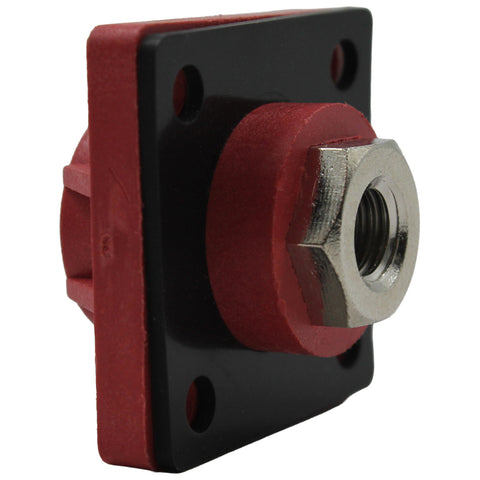

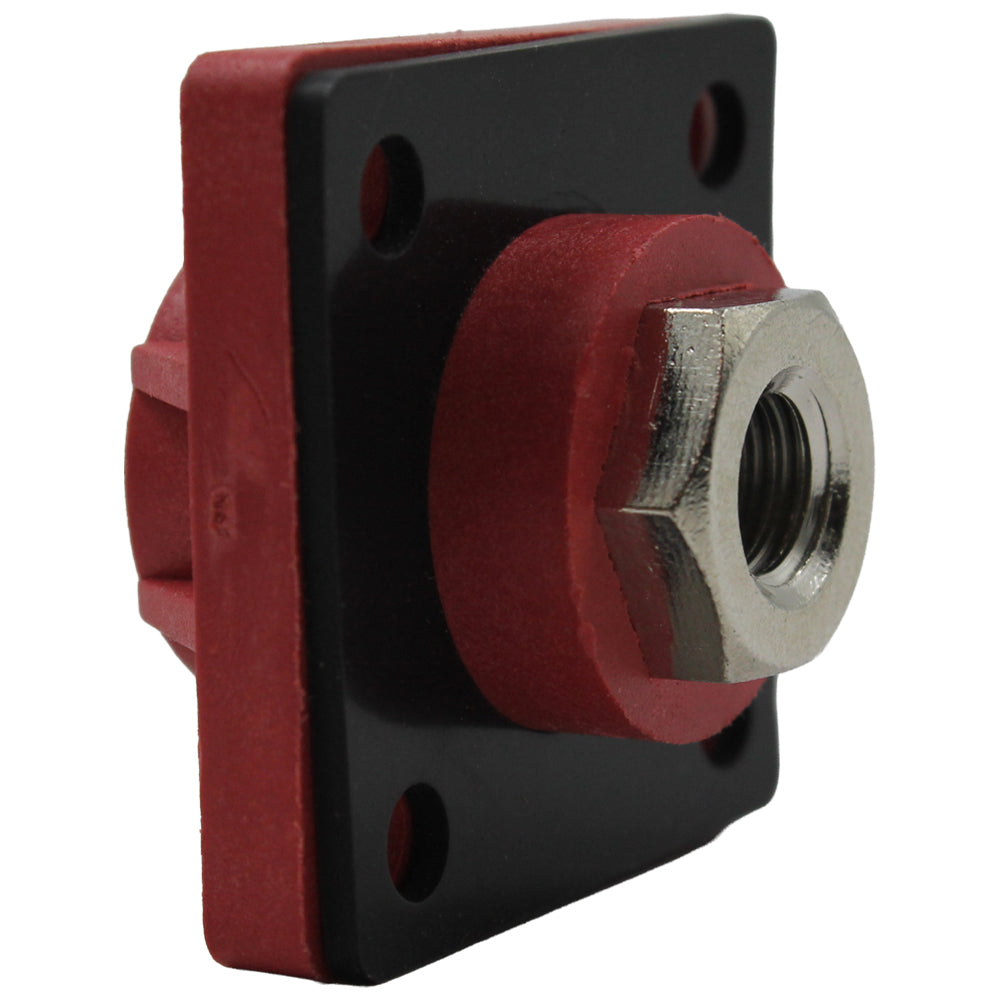

Rubber gasket for mounting face included
Durable, insulated, high-strength glass fibre-reinforced nylon base

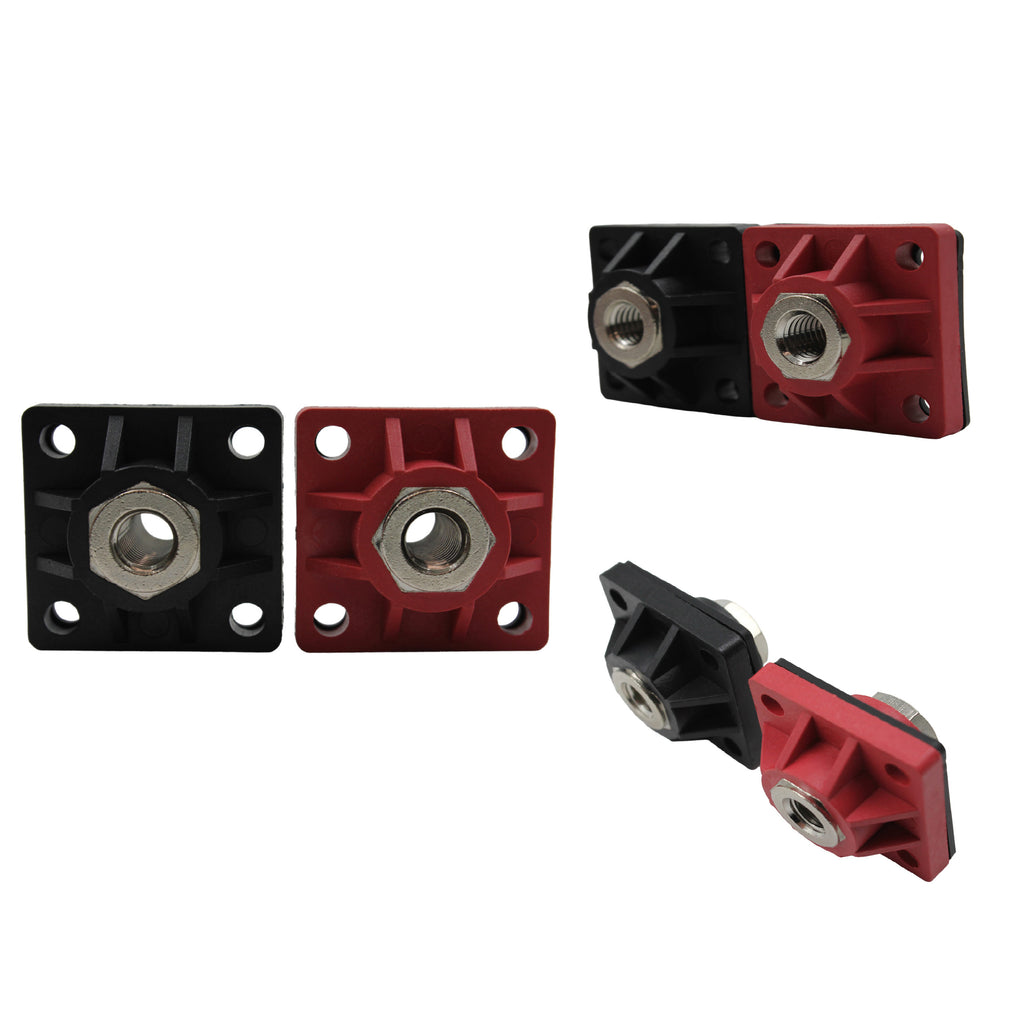

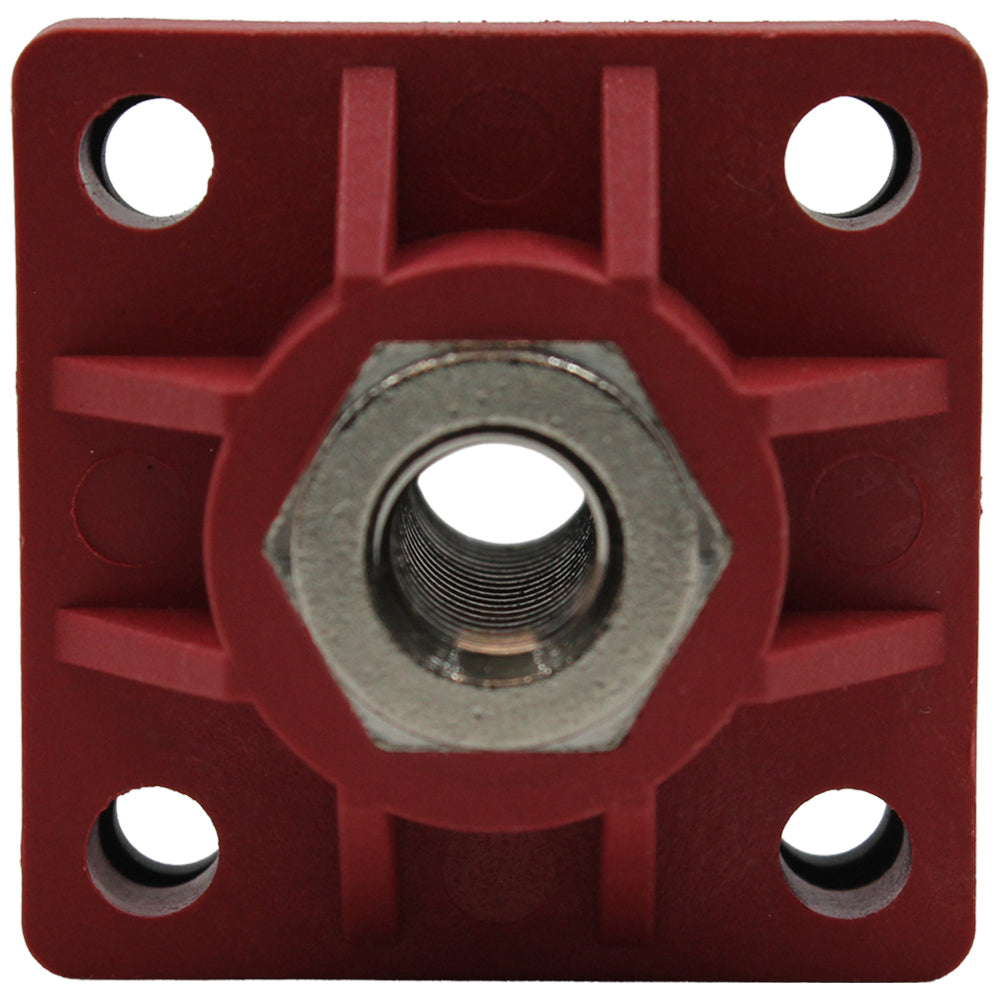

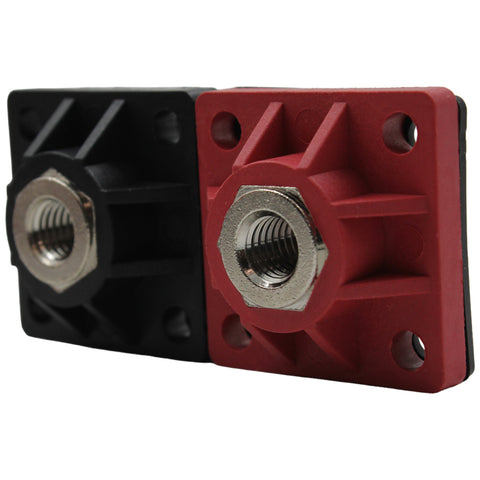

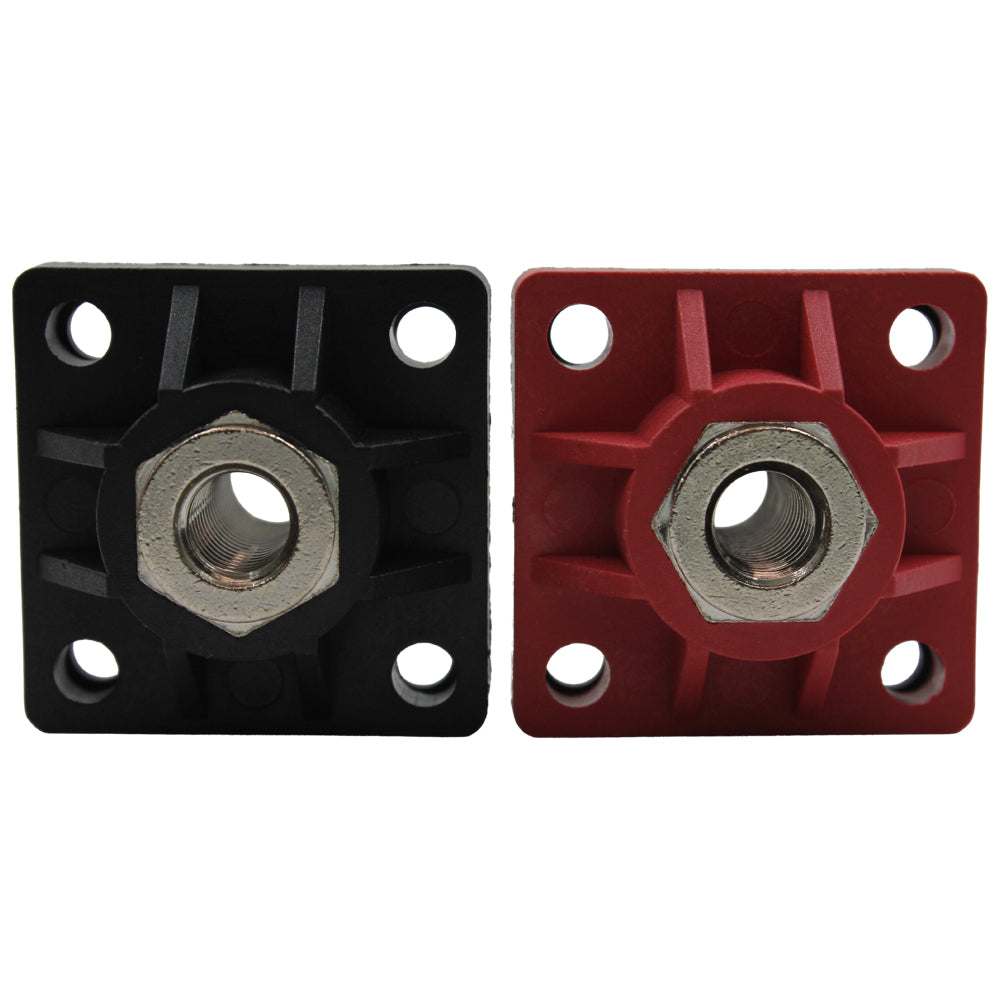

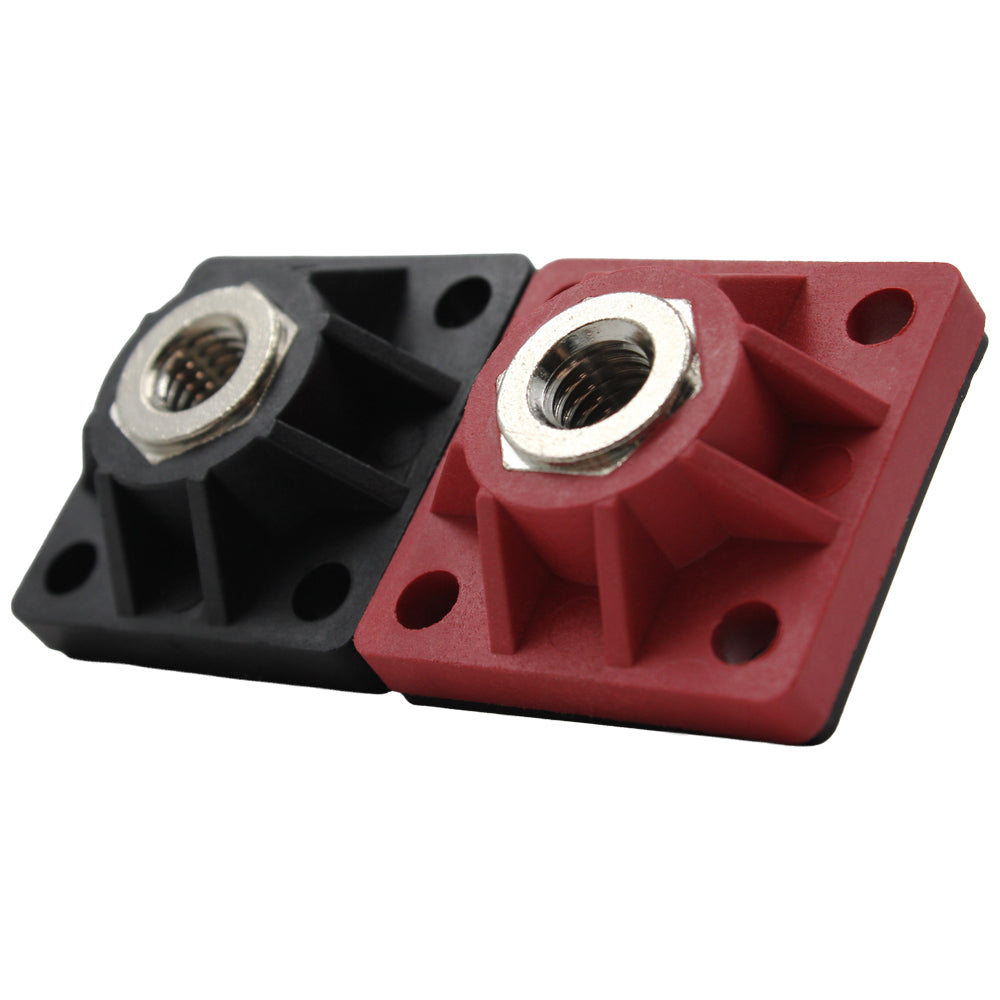

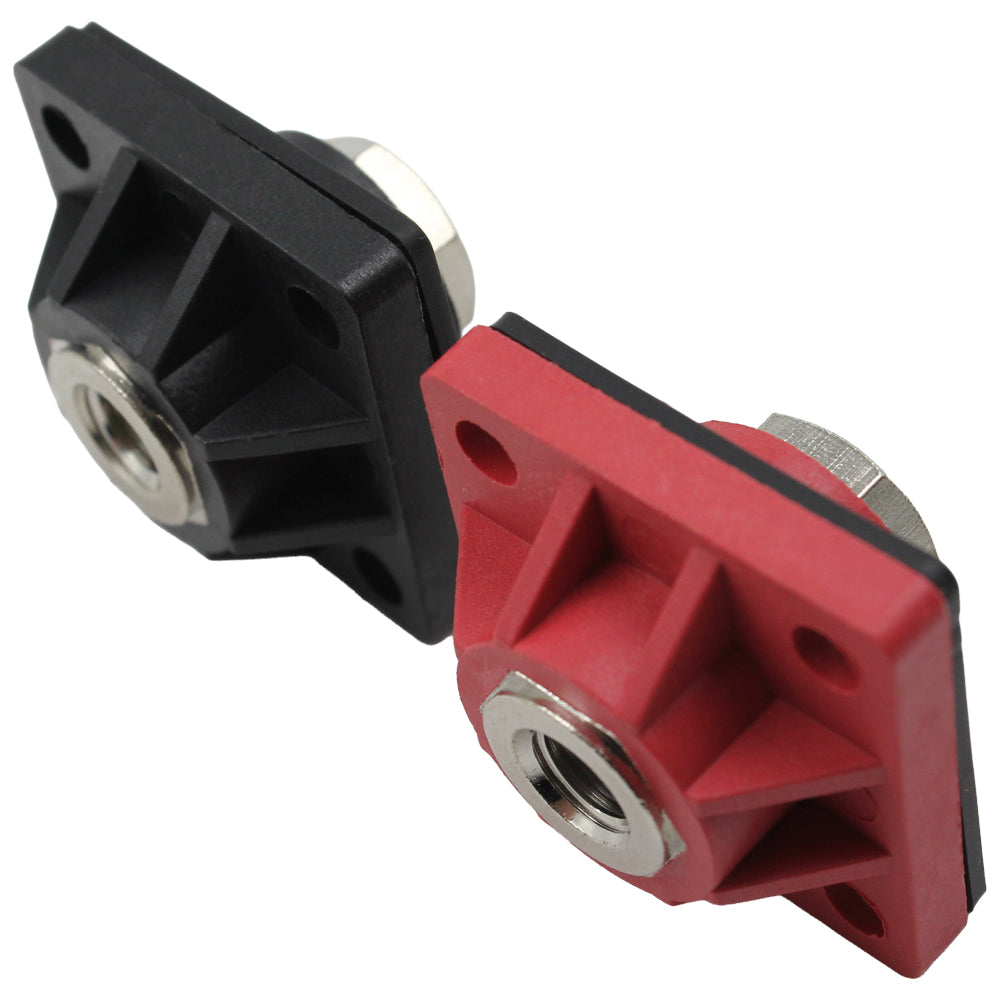

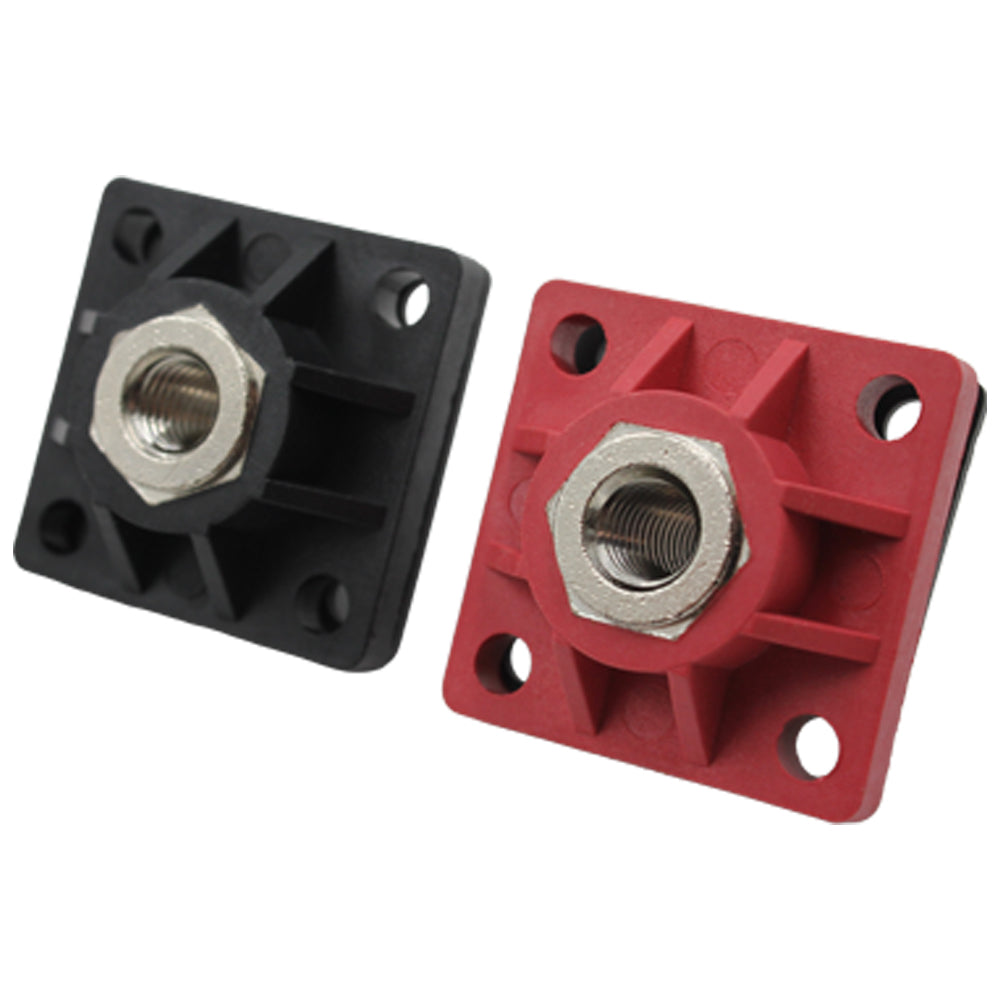

Select from Black (-), Red (+) or Set (Black + Red)
M8 bolts for centre conductive threaded insert, and M4 mounting bolts not included in purchase.
Included:
These M8 female-female threaded bulkhead connectors are built for safe and efficient power distribution in DC systems. Designed for panel-mount applications, they allow clean pass-through of high-current electrical connections through enclosures, panels, or control boxes.
Each connector features an standard M8x1.25mm thread on both sides and comes in red and black variants ideal for identifying positive and negative terminals in 12V, 24V, or 48V systems. Made from heavy-duty materials, they’re suitable for demanding environments like marine vessels, RVs, solar battery setups, and custom-built power systems.
The connectors are easy to install using four mounting screws and are engineered to provide reliable and long-lasting performance in high-current applications.
Please select Black, Red or Set from drop down menu
Max. Rating: 200A @ 12v
Max. Voltage Supply: 48vDC
Cut-Out Required: 20mm (Diameter)
Face Size: 34mm x 34mm
Length (Threaded Insert, Face-To-Face): 25mm
Terminals: 8mm female thread to suit M8x1.25mm bolts
Mounting Holes: 4.5mm
Mounting Hole Centres: 24.5mm (L) x 24.5mm (W)
